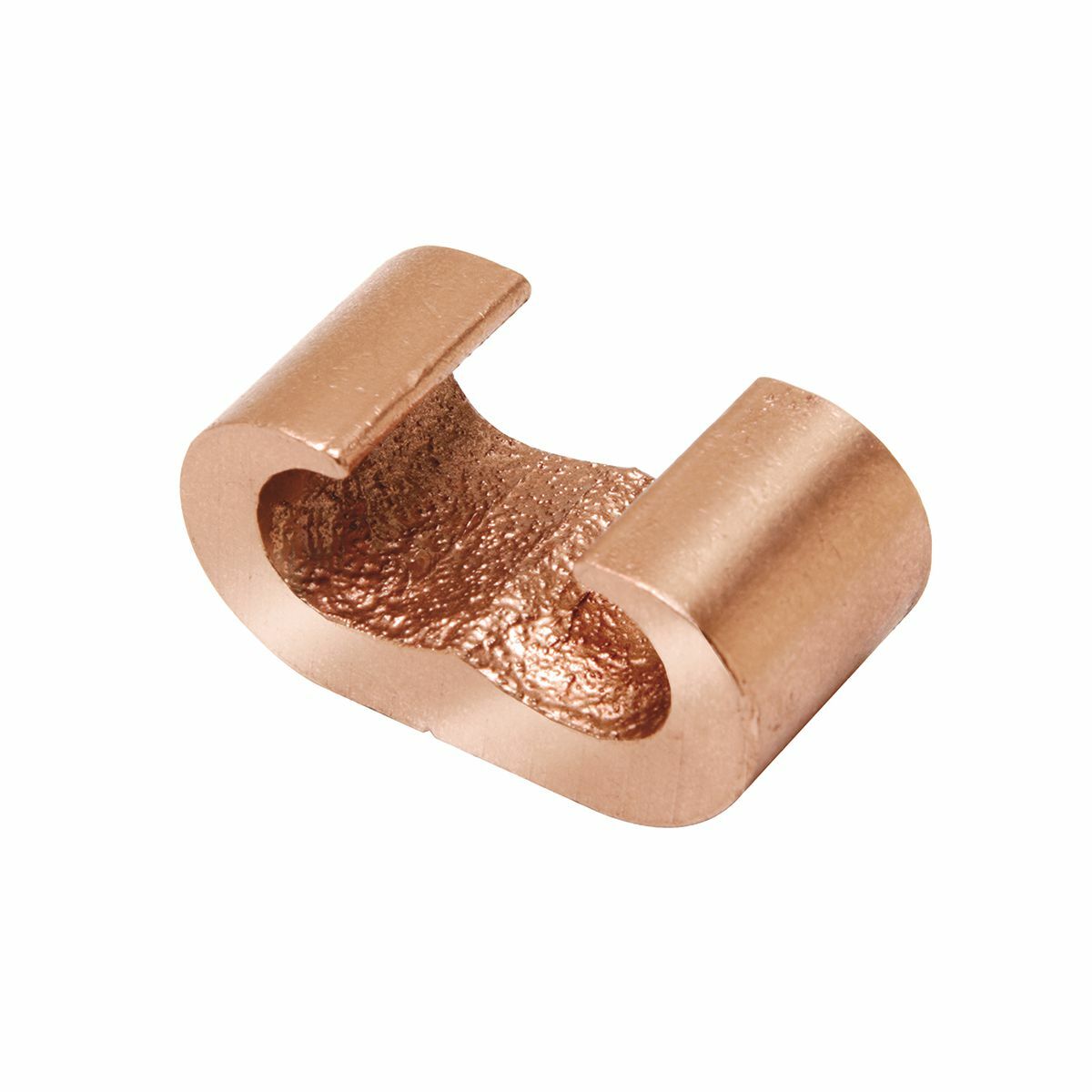

YGHC34C34 Type YGHC-C Compression C-Tap Connector, C Shape, 300 to 500 kcmil Main/Run, 300 to 500 kcmil Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YGHC34C34
- UPC:
- 781810221082
- Item #:
- 164523
YGHC34C34 Type YGHC-C Compression C-Tap Connector, C Shape, 300 to 500 kcmil Main/Run, 300 to 500 kcmil Tap, Copper
- MFR #:
- YGHC34C34
- UPC:
- 781810221082
- Item #:
- 164523
Manuals & Documentation
| Catalog Number | YGHC34C34 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial Cables |
| Material | Copper |
| Special Features | Features: Irreversible Compression Ground Tap Figure C Connectors, Accommodates All Cable Combinations From #6 AWG Solid Through 500 KCMIL, C- Shaped Opening Permits Placing Two Continuous Parallel Cables Into Conductor Groove, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Certain Sizes Are Also UL467 Listed And CSA Certified For Wire To Ground Rod, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Conductor Size (run - Mm): 150 - 240 SQ-MM, Die Index: 1011 Element A, Conductor Size (tap - Mm): 150 - 240 SQ-MM, Conductor Type: Run: Commercial Stranded Copper, Metric Copper, Tap: Commercial Stranded Copper, Metric Copper, Shape: C, Conductor Size (run - Range): 300 - 500 KCMIL, Conductor Size (tap Range): 300 - 500 KCMIL |
| Standard | Direct Burial |
| UPC | 781810221082 |
| GTIN | 00781810221082 |
| Item Type | Taps |
