SCHNEIDER ELECTRIC

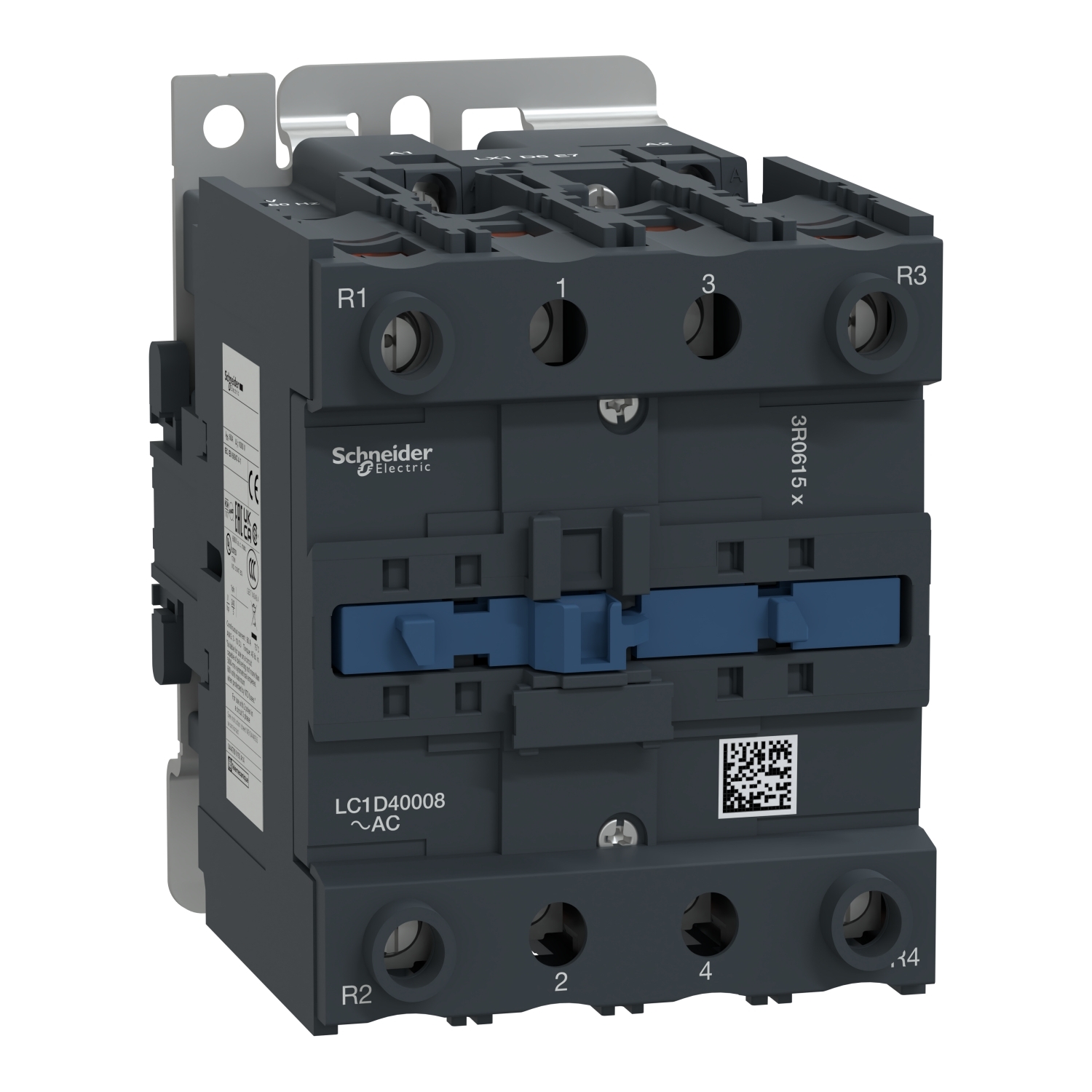

LC1D40008F7 TeSys D D-Line Standard IEC Contactor With Protective Cover, 110/690 V AC, 300 V DC V Coil, 60 A, 2NO-2NC Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1D40008F7
Item #:
163690

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 110V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC1D40008F7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load
Coil Voltage 110 V AC 50/60 Hz
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end;power circuit: screw connect
Contact Configuration 2 NO + 2 NC
Mounting Rail Plate
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4049525&lang=en-us
GTIN 03389110231588
Item Type Contactor
