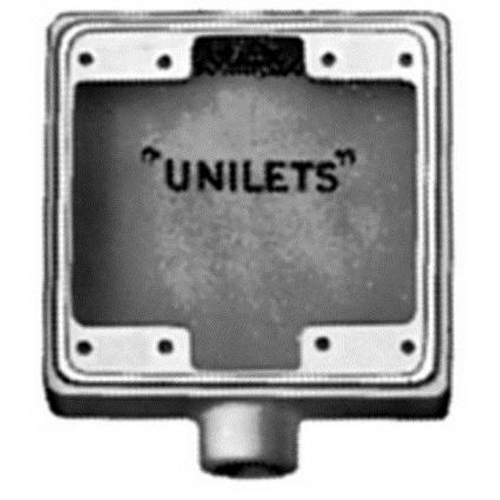

FS250 Unilets Type FS Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 32 cu-in Capacity, 2 Gangs, 1 Outlets, 1 Knockouts, 4.63 in H x 4.63 in W x 2 in D
- MFR:
- Appleton Electric
- MFR #:
- FS250
- UPC:
- 781381341608
- Item #:
- 162682
FS250 Unilets Type FS Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 32 cu-in Capacity, 2 Gangs, 1 Outlets, 1 Knockouts, 4.63 in H x 4.63 in W x 2 in D
- MFR #:
- FS250
- UPC:
- 781381341608
- Item #:
- 162682
UNILETS FS Shallow Depth 2-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (1) 1/2 IN Hub, Cubic Capacity: 32 CU-IN, Knockouts: No, Height: 4.63 IN, Width: 4.63 IN, Depth: 2 IN, Finish: Triple
Manuals & Documentation
Features
- Dimension: 4.630 Inch Width x 2 Inch Depth x5.880 Inch Height
- Boxes have ridge top construction for positive cover, gasket, box
- Accurately tapped, tapered threads for tight, rigid joints, ground continuity; smooth, rounded integral bushing in each hub protects conductor insulation
- Serve as pull boxes for conductors
- Permit access to conductors for maintenance
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
| Catalog Number | FS250 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Cable Entry | (1) 1/2 IN Hub |
| Cubic Capacity | 32 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381341608 |
| GTIN | 00781381341608 |
| Item Type | FS Shallow Depth 2-Gang Cast Device Box |
| Length | 5.3000 |
| Length UOM | Inch |
| Width | 5.0000 |
| Width UOM | Inch |
| Height | 3.0000 |
| Height UOM | Inch |
| Weight | 2.400 |
| Weight UOM | Pounds |
| Size | 1/2 |
