SCHNEIDER ELECTRIC

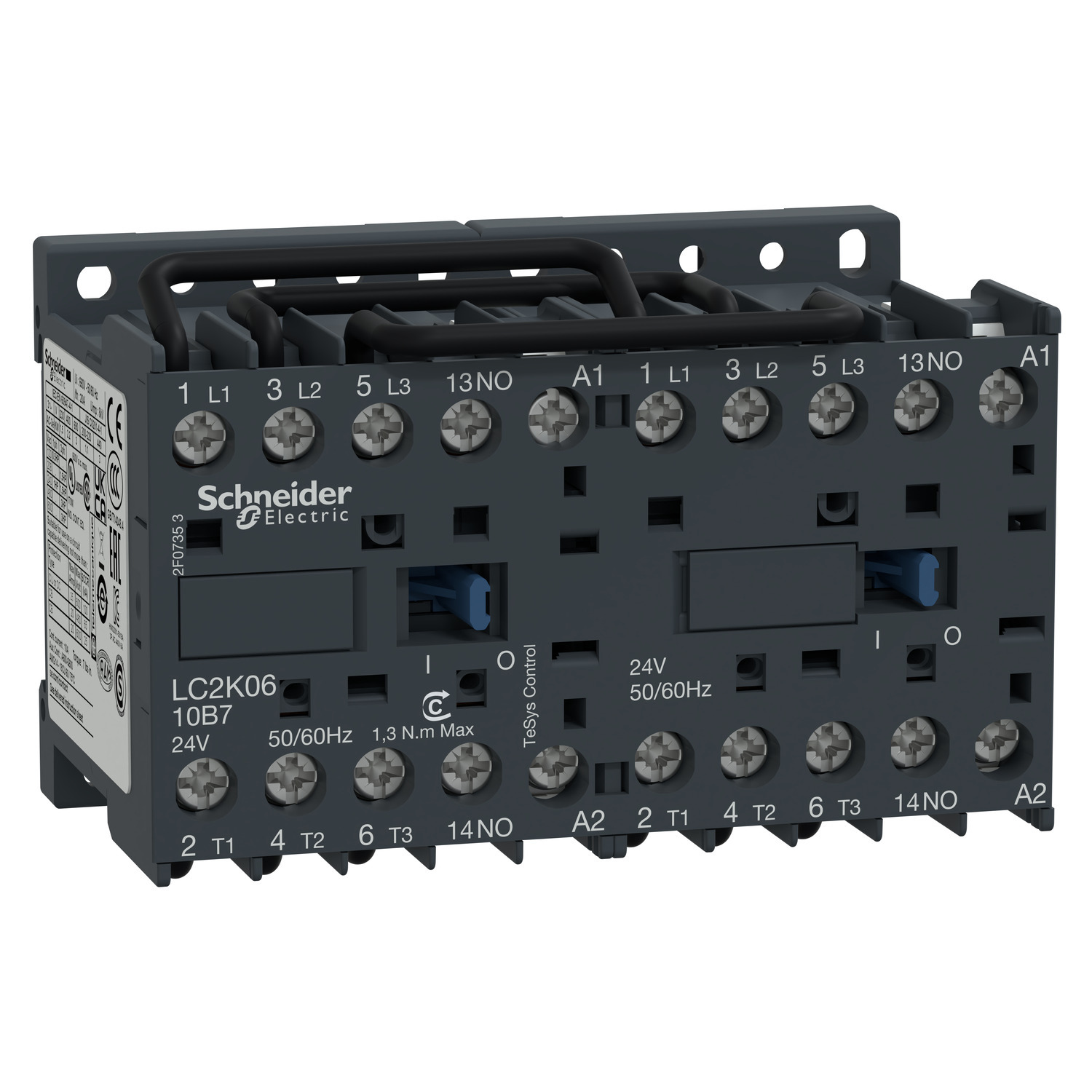

LC2K0610B7 TeSys K Miniature Reversing IEC Contactor, 24/690 V AC V Coil, 6 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC2K0610B7
Item #:
161907

LC2K0610B7 is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 24V 50/60Hz AC coil, 2NO auxiliary contacts, a mechanical interlock and pre-wired reversing circuit. LC2K0610B7 is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It includes a 24V 50/60Hz AC coil and 2NO built-in auxiliary contacts. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Provides a 24V AC coil compatible 50/60Hz and 2NO built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Manuals & Documentation
Catalog Number LC2K0610B7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Motor control
Coil Voltage 24 V AC 50/60 Hz
Contact Configuration 1 NO
Standard CB Scheme;CCC;UL;CSA;EAC;CE;UKCA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=629380&lang=en-us
GTIN 03389110429435
Item Type Reversing contactor;LC2K
