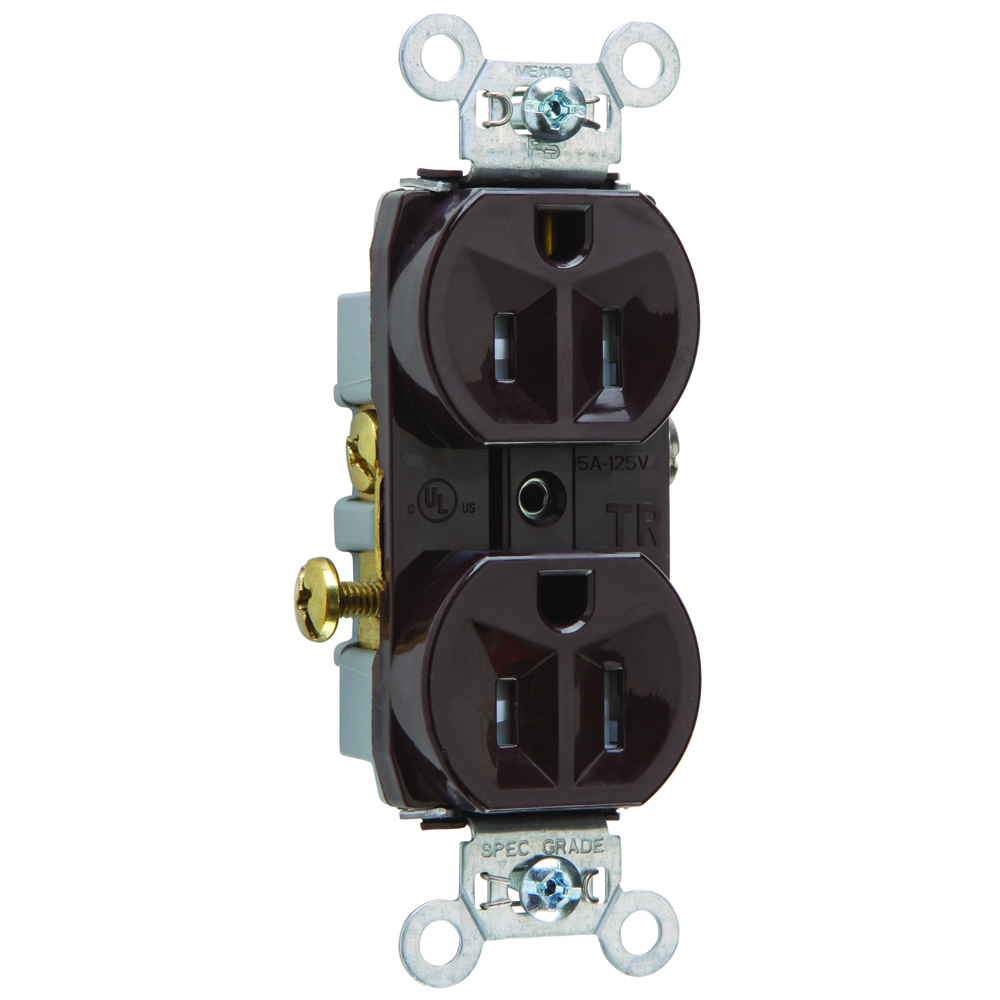

Tamper-Resistant Commercial Grade Receptacle, 15A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Catalog Number TR15
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Color Brown
Connection Side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive steel terminal screws for faster installation. Side wire capability. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Standard cULus UL498, CSA C22.2 No. 42
UPC 785007241600
GTIN 00785007241600
Item Type Tamper-Resistant Commercial Grade Receptacle
Size 1.322 L x 1.130 W x 3.281 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 50° C
Voltage Rating 125
Wire Size 14 - 10 AWG
