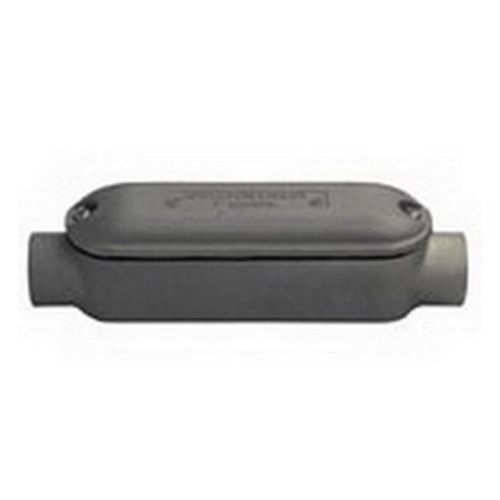

C8X-200M Type C8X Mogul Conduit Outlet Body With Cover, 2 in Hub, 143 cu-in Capacity, Malleable Iron, Triple Coated
- MFR:
- O-Z/Gedney
- MFR #:
- C8X-200M
- UPC:
- 783126002539
- Item #:
- 161578
C8X-200M Type C8X Mogul Conduit Outlet Body With Cover, 2 in Hub, 143 cu-in Capacity, Malleable Iron, Triple Coated
- MFR #:
- C8X-200M
- UPC:
- 783126002539
- Item #:
- 161578
Manuals & Documentation
| Catalog Number | C8X-200M |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Rigid Conduit And IMC |
| Connection | Tapered FNPT |
| Finish | Triple coat: Zinc Electroplated, Dichromate, Epoxy Powder Coat |
| Hub Size | 2 IN |
| Material | Malleable Iron |
| Special Features | Mogul design for large and heavy conductors; Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Supplied completely assembled with cover, gasket and captive stainless steel screws; Raintight and suitable for use in wet locations; Threaded NPT tapered hubs; Smooth integral hub bushings protect conductor insulation; Replacement covers and gaskets available; Supplied with built-in cable-pulling rollers; Straight hub placement; Access opening: Side |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10 |
| UPC | 783126002539 |
| GTIN | 00783126002539 |
| Item Type | Type C Mogul Conduit Body |
| Length | 17.94 |
| Width | 3.13 |
| Height | 4.44 |
