Discontinued

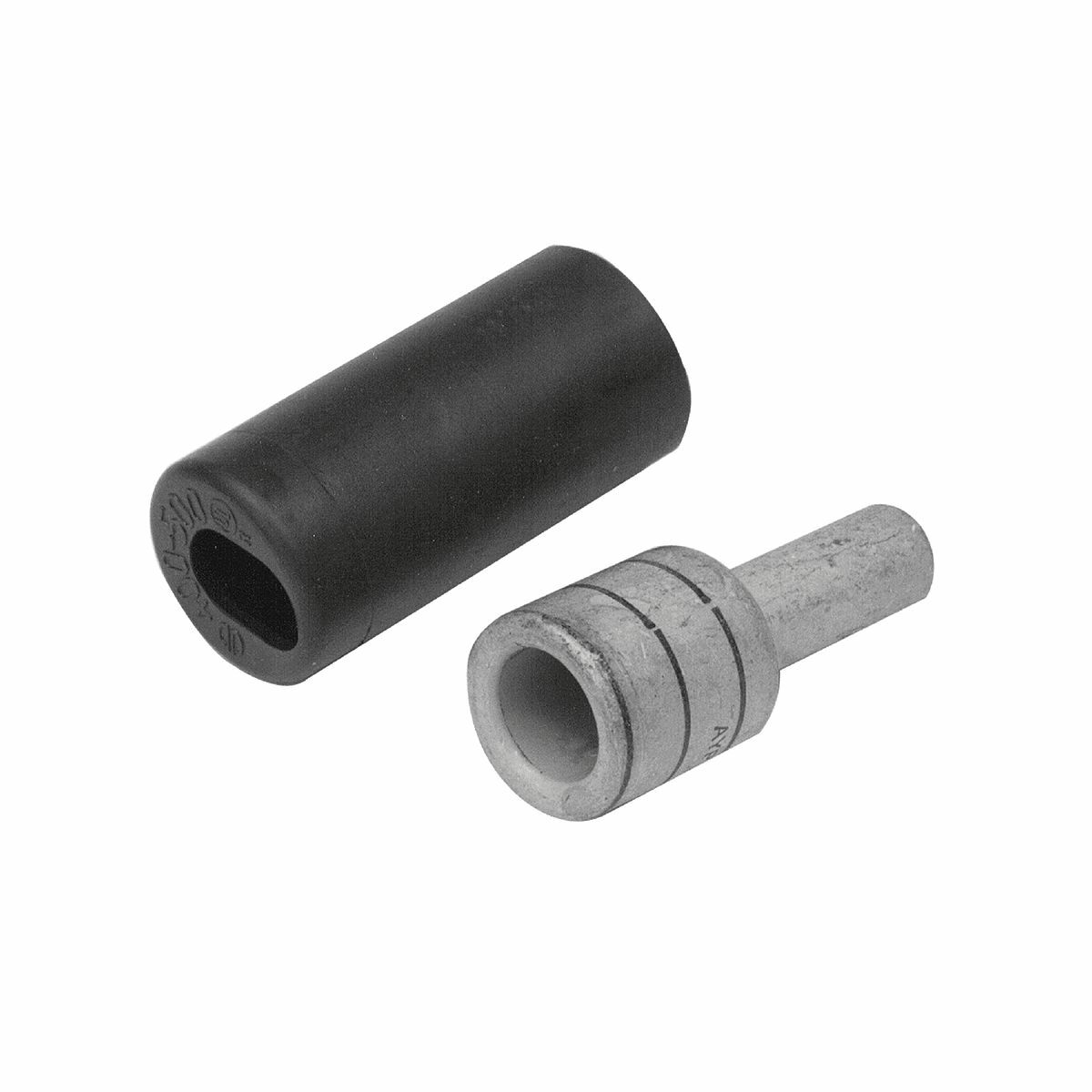

YE38P71X142FX Type YE-P-FX Compression Pin Adapter, 550 kcmil Conductor, Die Code: L99 Element A, 0.71 in Dia x 1.42 in L Pin, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YE38P71X142FX
- UPC:
- 781810037744
- Item #:
- 161250
Discontinued
YE38P71X142FX Type YE-P-FX Compression Pin Adapter, 550 kcmil Conductor, Die Code: L99 Element A, 0.71 in Dia x 1.42 in L Pin, Copper
- MFR #:
- YE38P71X142FX
- UPC:
- 781810037744
- Item #:
- 161250
Manuals & Documentation
| Catalog Number | YE38P71X142FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Copper Conductors |
| Insulation | Y |
| Special Features | Features: Type YE-P Copper Compression Adapters Are Designed For Reliable Termination Of Copper Conductor When The Current Capacity Of The Conductor Is Downsized, But Larger Conductor Is Utilized, Typical Applications Are For Voltage Drop Protection When Oversized Conductors Are Used Or Flex Conductor Is Used, These Adapters Facilitate The Termination Into Existing Mechanical Set Screw Connectors For Various Stranded Copper Cables, Die Index: L99 Element A, Color Code: Pink, Plug/pin Diameter: 0.71 IN - 500 KCMIL, Plug/pin Length: 1.42 IN, Pin Size (equivalent): 500 KCMIL, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35/Y39, Y750 Tool, U38XRT Die, (4), Y45 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die, (4), Y644M Tool, (1), Wire Strip Length: 3-3/8 IN |
| UPC | 781810037744 |
| GTIN | 00781810037744 |
| Item Type | Copper Pin Adapters |
