Telemecanique

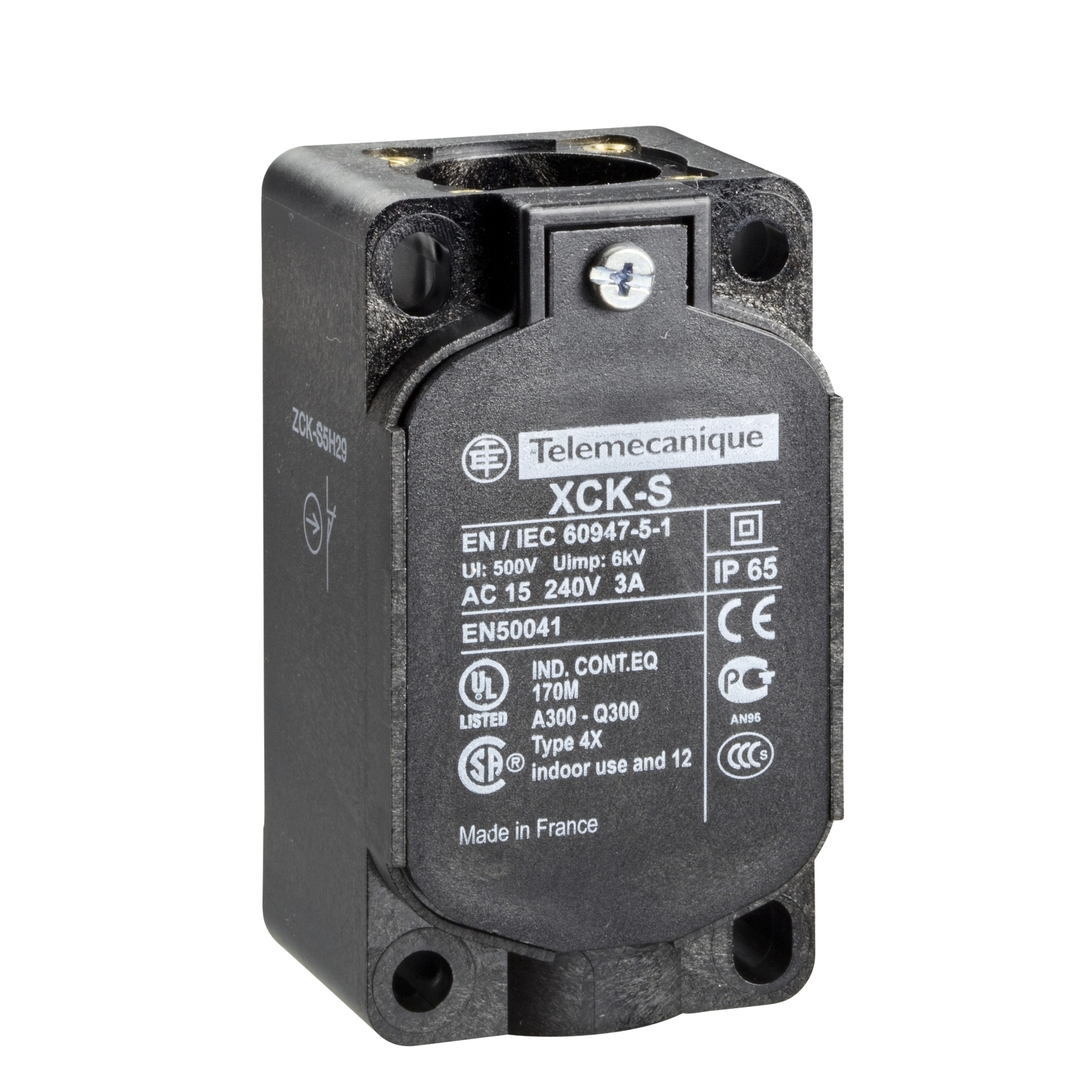

ZCKS2 OsiSense 2-Pole Fixed Limit Switch Body, 2CO Contact, For Use With XCKS Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP65/IK03 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKS2
UPC:
785901855835
Item #:
161073

This body, with a 2-pole contact bloc,k is a separate part for the XCKS limit switches. Contacts: 2 CO simultaneous, snap action. It is a plastic, double insulated body, in EN 50041 format, with 1 Pg 13.5 cable entry.

Manuals & Documentation
Catalog Number ZCKS2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKS
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP65
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK03,IP65
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879986&lang=en-us
UPC 785901855835
GTIN 03389110645842
Item Type Limit switch body
Size 36 MM,40 MM,73-73 MM
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
