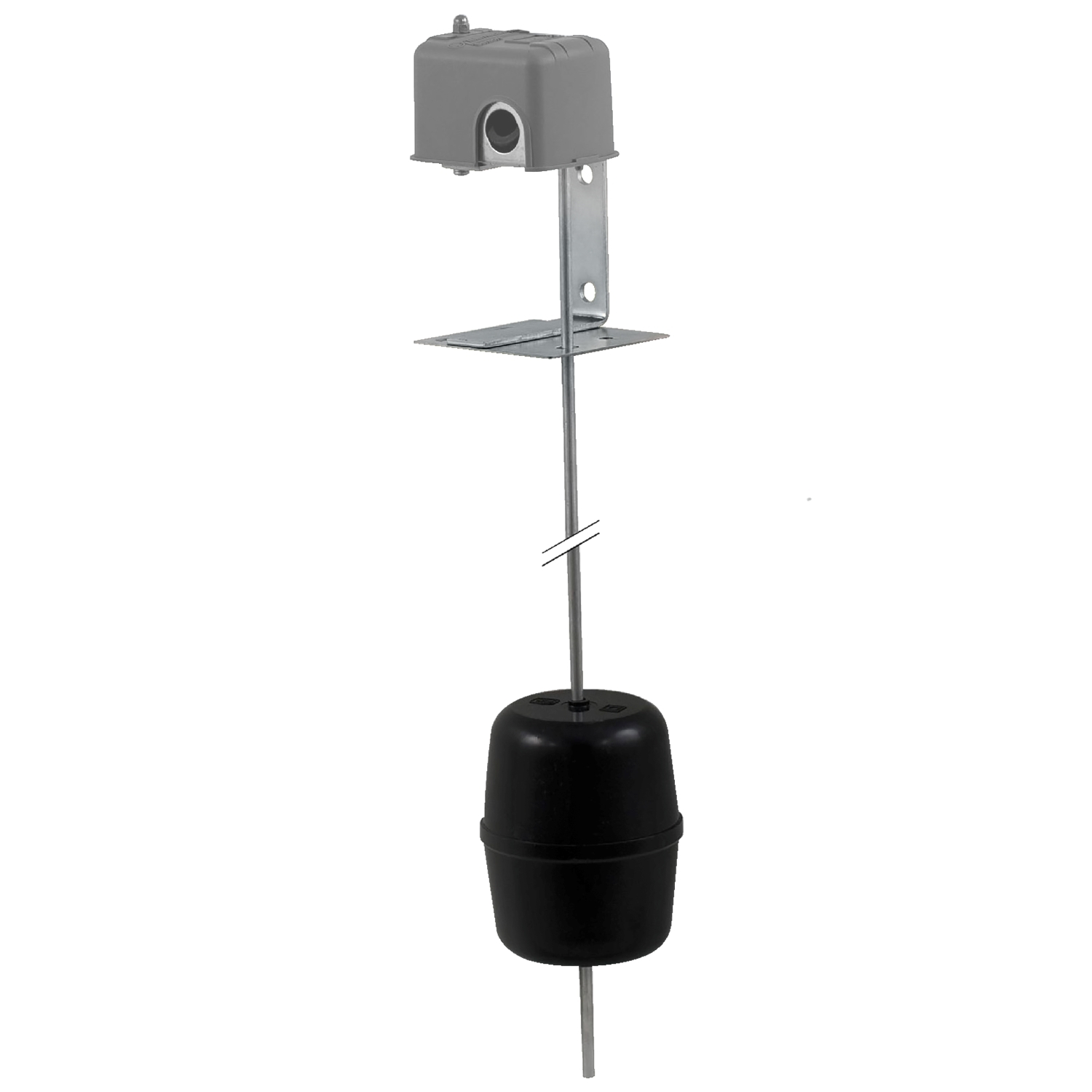

Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts
- MFR:
- Telemecanique Sensors
- MFR #:
- 9036FG30
- UPC:
- 785901009207
- Item #:
- 160272
Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts
- MFR #:
- 9036FG30
- UPC:
- 785901009207
- Item #:
- 160272
float switch - open tank - NEMA 1 - pedestal mounted - 2 NC DPST-DB contacts
Manuals & Documentation
| Catalog Number | 9036FG30 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Action | Contacts close on liquid rise |
| Application | Liquid level control;Power circuit;Open tank pedestal style;For open tank or sump |
| Connection | Screw-clamp terminals 10 AWG;4 terminals |
| Mounting | Pedestal |
| Special Features | Set of 1;Without |
| Standard | CE-UL 508,CSA FILE LR25490-UL LISTED FILE E12158,NEMA 1 UL 50 |
| UPC | 785901009207 |
| GTIN | 00785901009207 |
| Item Type | Float switch |
| Temperature Rating | -22-220 A Degrees F |
| Voltage Rating | 575 V |
