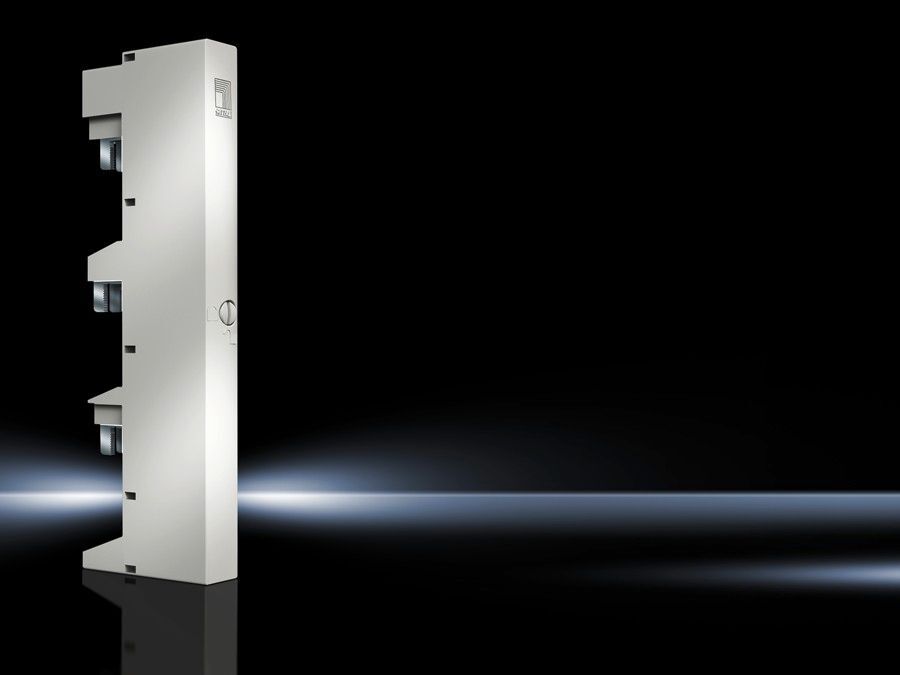

9342200 Connection Adapter, 690 V AC, 63 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top, 2.5 to 10 sq-mm Wire Size, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, ABS, Pale Gray
- MFR:
- Rittal
- MFR #:
- 9342200
- UPC:
- 639889830691
- Item #:
- 159027
9342200 Connection Adapter, 690 V AC, 63 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top, 2.5 to 10 sq-mm Wire Size, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, ABS, Pale Gray
- MFR #:
- 9342200
- UPC:
- 639889830691
- Item #:
- 159027
SV Connection adaptor, 63 A, 690 V, 3-pole, cable outet top, round conductor connection 2,5-10 mm
Manuals & Documentation
| Catalog Number | 9342200 |
| Manufacturer | Rittal |
| Brand | Rittal |
| Country of Origin | Germany |
| Made in USA | No |
| Amperage Rating | 63 |
| Color | RAL 7035 |
| Enclosure | Compact Enclosure |
| Material | ABS (Cover), Polyamide (PA 6.6) (Chassis), Fiberglass-Reinforced, Thermoplastic Polyester (PBT) |
| Number of Poles | 3 |
| Special Features | Features: Fire Protection |
| Standard | UL 94-V0 Listed, UL Recognized |
| UPC | 639889830691 |
| GTIN | 00639889830691 |
| Item Type | Connection Adapter |
| Size | 215 (H) x 20 (W) |
| Voltage Rating | 690 |
