O-Z/Gedney

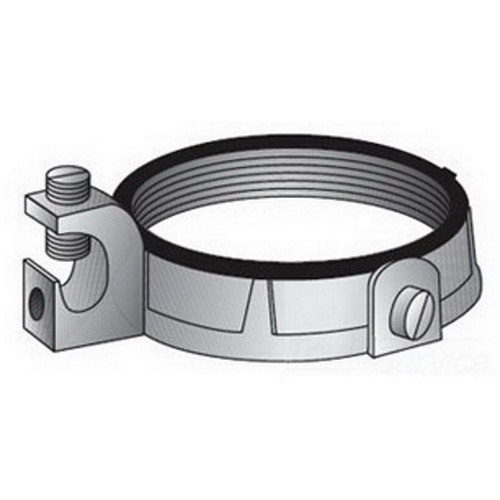

IBC-150L-4BC Threaded Grounding Bushing, 1-1/2 in Trade, 14 AWG Solid Wire Min, 4 AWG Stranded Wire Max, 2-5/16 in Dia, Malleable Iron

MFR:
O-Z/Gedney
MFR #:
IBC-150L-4BC
UPC:
783126306118
Item #:
158802
Manuals & Documentation

Features

  • UL temperature rating 150øC
  • Insulating liner material is UL V-O Rate
  • The plastic liner is tough. It won?t chip, crack, swell or shrink
  • It resists corrosion, chemicals and temperature extremes
  • Set-screw provided with each fitting locks bushing in any desired position
  • UL Listed for use with copper grounding conductors only
Catalog Number IBC-150L-4BC
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Rigid Conduit And IMC
Connection Threaded
Finish Zinc Plated Body, Bright Dip Lug, Zinc Plated Clamping Screw And Set Screws
Material Malleable Iron Body, Bronze Lug, Steel Clamping Screw And Set Screws
Special Features O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper grounding conductors only; Lugs not sold separately
Standard Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126306118
GTIN 00783126306118
Item Type Type IBC-L-BC Insulated Grounding Bushing With Lug
Size 1-1/2
Temperature Rating 150 DEG C
