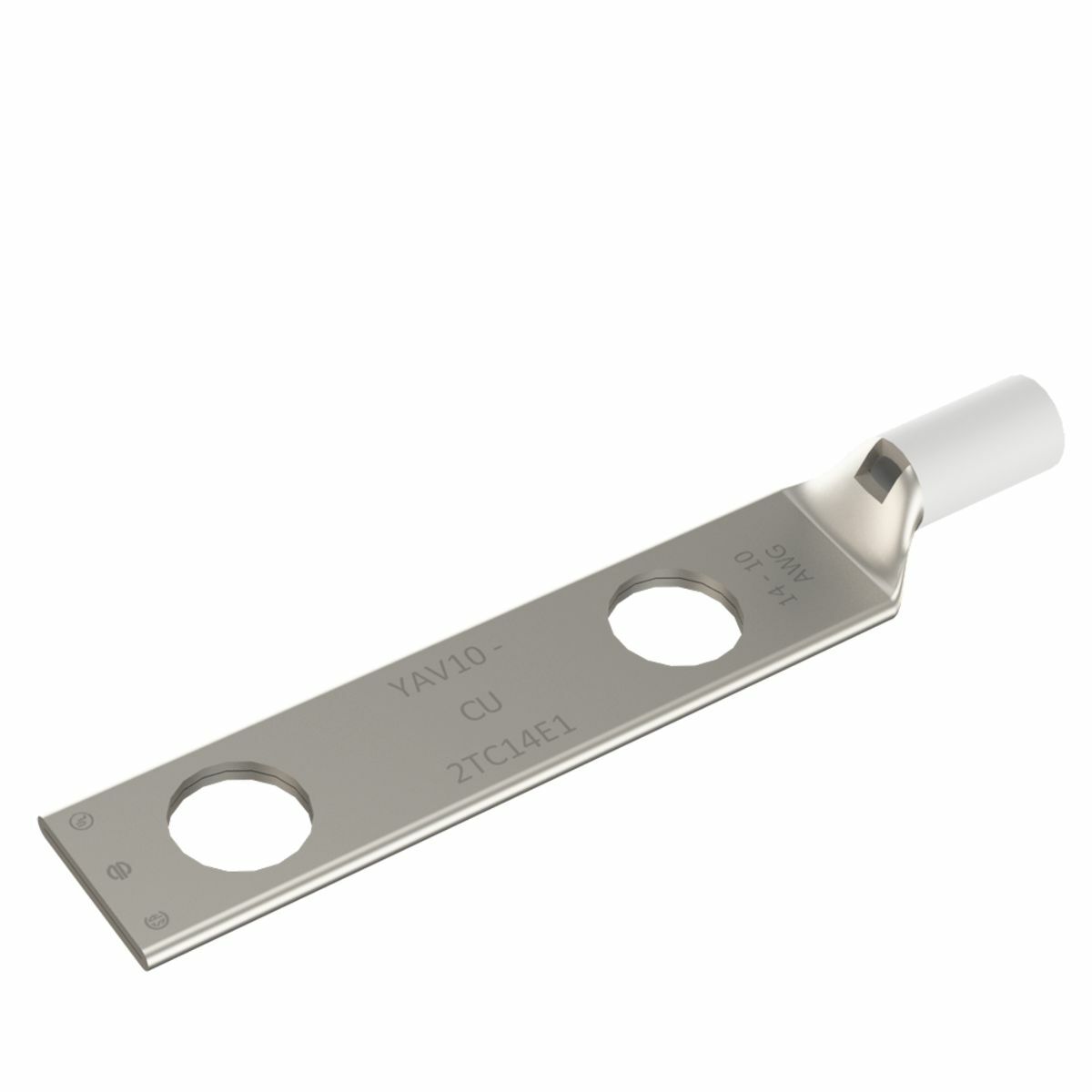

YAV102TC38 YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, Die Code: 2 Scribe, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAV102TC38
- UPC:
- 781810021859
- Item #:
- 158745
YAV102TC38 YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, Die Code: 2 Scribe, 3/8 in Stud, Copper
- MFR #:
- YAV102TC38
- UPC:
- 781810021859
- Item #:
- 158745
Manuals & Documentation
| Catalog Number | YAV102TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/16 IN, Die Index: 2 SCRIBE |
| Standard | UL 486A-486B |
| UPC | 781810021859 |
| GTIN | 00781810021859 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
