O-Z/Gedney

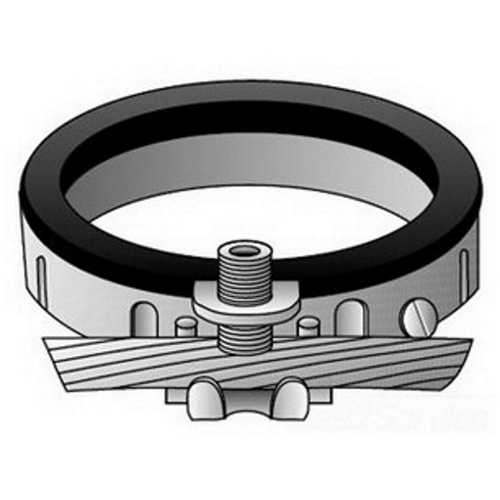

HBLG-1504 Type HBLG Grounding Bushing, 14 to 4 AWG AC Cable, 1-1/2 in Trade, Malleable Iron, Hot Dipped/Mechanically Galvanized

MFR:
O-Z/Gedney
MFR #:
HBLG-1504
UPC:
783126270303
Item #:
158440
Manuals & Documentation

Features

  • Allows easy insertion
  • Design maintains positive firm contact
  • Low grounding connector profile
  • Provides fixed alignment
  • Positive ground continuity
  • UL listed
  • CSA certified
Catalog Number HBLG-1504
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Threaded Rigid Conduit, IMC And EMT Conduit
Connection Set-Screw
Finish Hot Dip Or Mechanically Galvanized
Material Malleable Iron Body, Stainless Steel Screws
Special Features O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug; Mechanically galvanized finish provides a plating thickness equivalent to hot-dip process, meeting ASTM A-153 performance criteria; Unlike the hot-dip process, mechanical galvanizing provides
Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126270303
GTIN 00783126270303
Item Type Type HBLG Insulated Grounding Bushing
Size 1-1/2
Temperature Rating 150 DEG C
