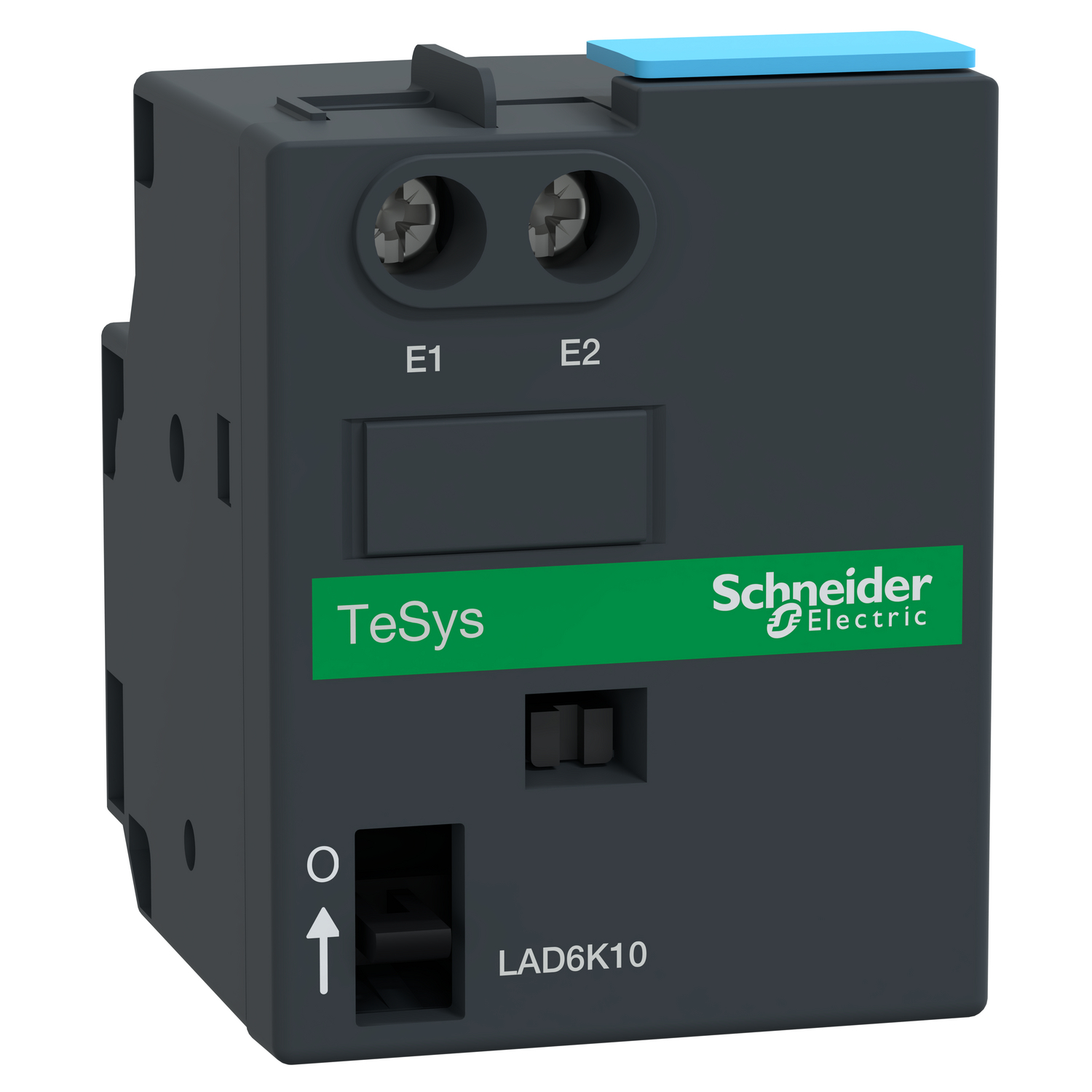

LAD6K10F TeSys Mechanical Latch Contact Block, For Use With TeSys D LC1D09 to LC1D38, LC1D40A to LC1D65A, LC1DT20 to LC1DT40, LC1DT60A to LC1DT80A Contactor and TeSys D Control Relay
- MFR:
- Schneider Electric
- MFR #:
- LAD6K10F
- Item #:
- 158426
LAD6K10F TeSys Mechanical Latch Contact Block, For Use With TeSys D LC1D09 to LC1D38, LC1D40A to LC1D65A, LC1DT20 to LC1DT40, LC1DT60A to LC1DT80A Contactor and TeSys D Control Relay
- MFR #:
- LAD6K10F
- Item #:
- 158426
TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA).
Manuals & Documentation
| Catalog Number | LAD6K10F |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | LC1D09...D38 AC/DC;LC1DT20...DT40 AC/DC;LC1D40A...D80A 3 phase AC/DC;LC1DT60A 3 phases + neutral AC/DC;LC1DT80A 3 phases + neutral AC/DC |
| Coil Voltage | 110/127 V AC 50/60 Hz;110/127 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=609576&lang=en-us |
| GTIN | 03389110842388 |
| Item Type | Mechanical latch block |
