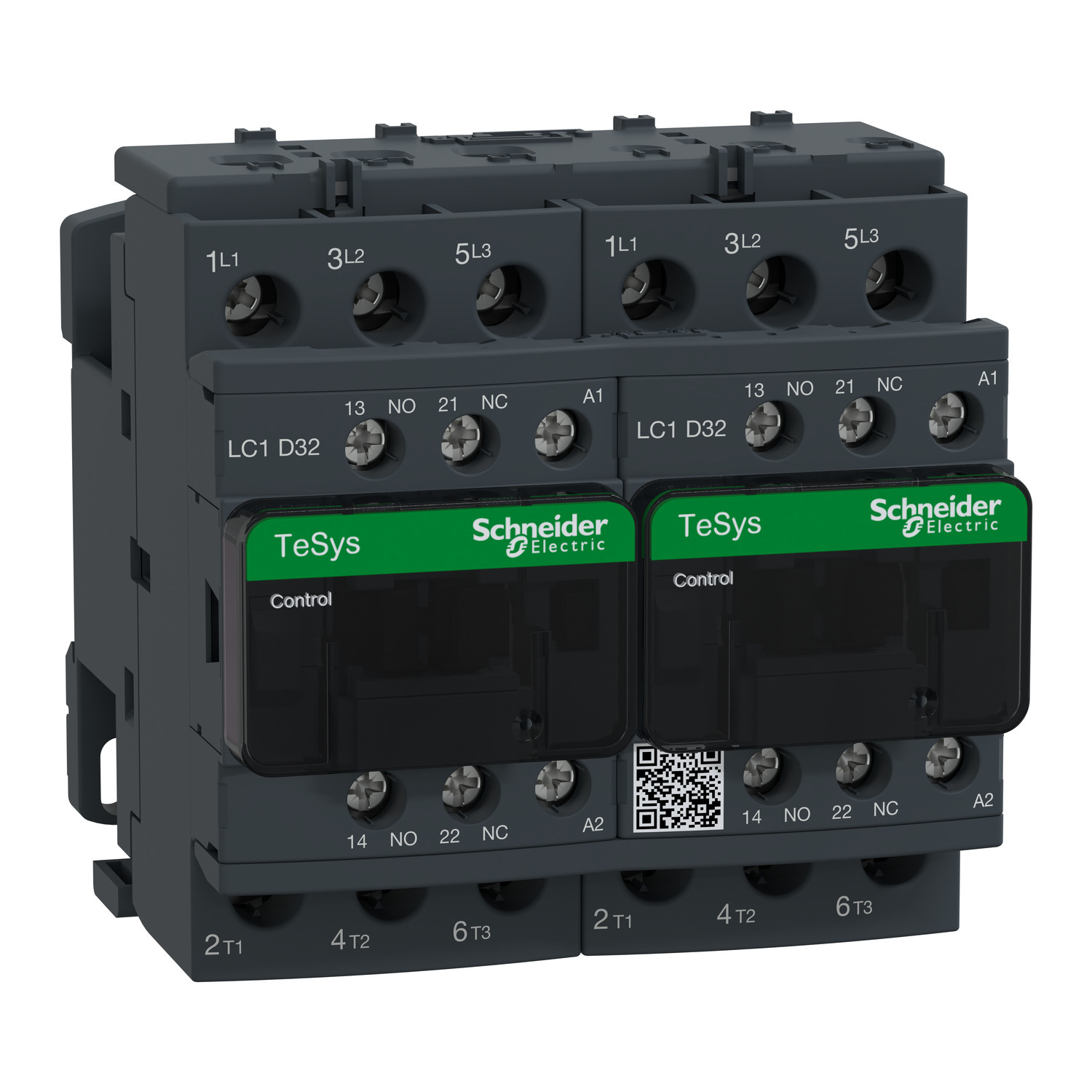

LC2D32G7 LC1D D-Line Mechanical Standard IEC Contactor, 120/690 V DC, 300 V DC V Coil, 32/50 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2D32G7
- Item #:
- 158407
LC2D32G7 LC1D D-Line Mechanical Standard IEC Contactor, 120/690 V DC, 300 V DC V Coil, 32/50 A, 3NO Contact, 3 Poles
- MFR #:
- LC2D32G7
- Item #:
- 158407
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). They can be used to create motor starters for almost any type of application. It provides 120V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals & Documentation
| Catalog Number | LC2D32G7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 120 V AC 50/60 Hz |
| Contact Configuration | 1 NO + 1 NC |
| Standard | UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA;CB |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1475048&lang=en-us |
| GTIN | 03389110391527 |
| Item Type | Reversing contactor;LC2D |
