BURNDY

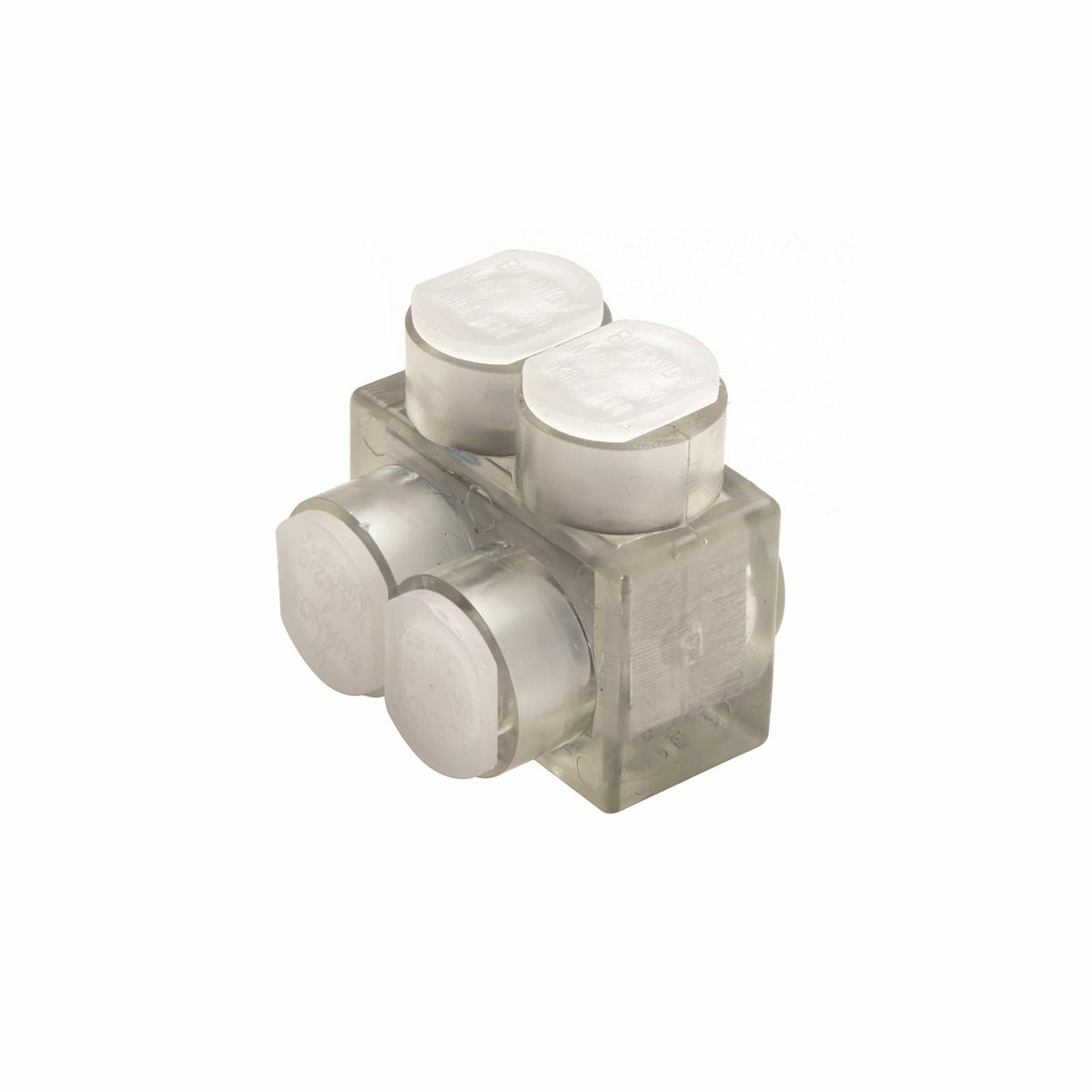

BIT250 1-Sided Entry Multi-Tap Connector, 10 AWG to 250 kcmil Conductor, Aluminum/Copper Stranded Conductor, Aluminum

MFR:
Burndy, a Hubbell affiliate
MFR #:
BIT250
UPC:
781810133521
Item #:
158244
Manuals & Documentation
Catalog Number BIT250
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Indoor Use Only, Copper Or Stranded Aluminum
Material Aluminum
Special Features Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 275 IN-LB, Wire Entry: Double, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Wire Strip Length: 1-3/16 IN, Type Of Insulation: Plastisol, Number Of Ports: 2
Standard UL 486A-486B
UPC 781810133521
GTIN 00781810133521
Item Type BIT
Temperature Rating 90 Degrees C
Cross Reference Products IT-3/0C, CSB-250-2-S
