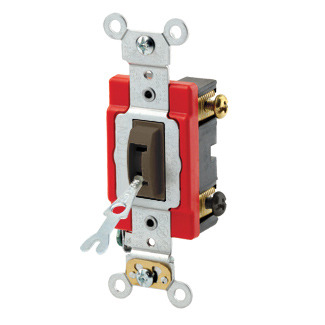

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Manuals & Documentation
| Catalog Number | 1222-2L |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | DP |
| Actuator | Key |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Brown |
| Connection | Back Wired;Side Wired |
| Mounting | Box |
| Number of Poles | 2 |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| UPC | 078477358429 |
| GTIN | 00078477358429 |
| Item Type | Toggle Switch |
| Size | 46 H x 1.31 W x 13 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Operating Temperature | -40 to +60 DEG C |
| Voltage Rating | 120/277 |
| Cross Reference Products | Bryant 4902L|EatonWD AH1222L|HublWiring HBL1222L|PassSeymor PS20AC2L |
