SQUARE D

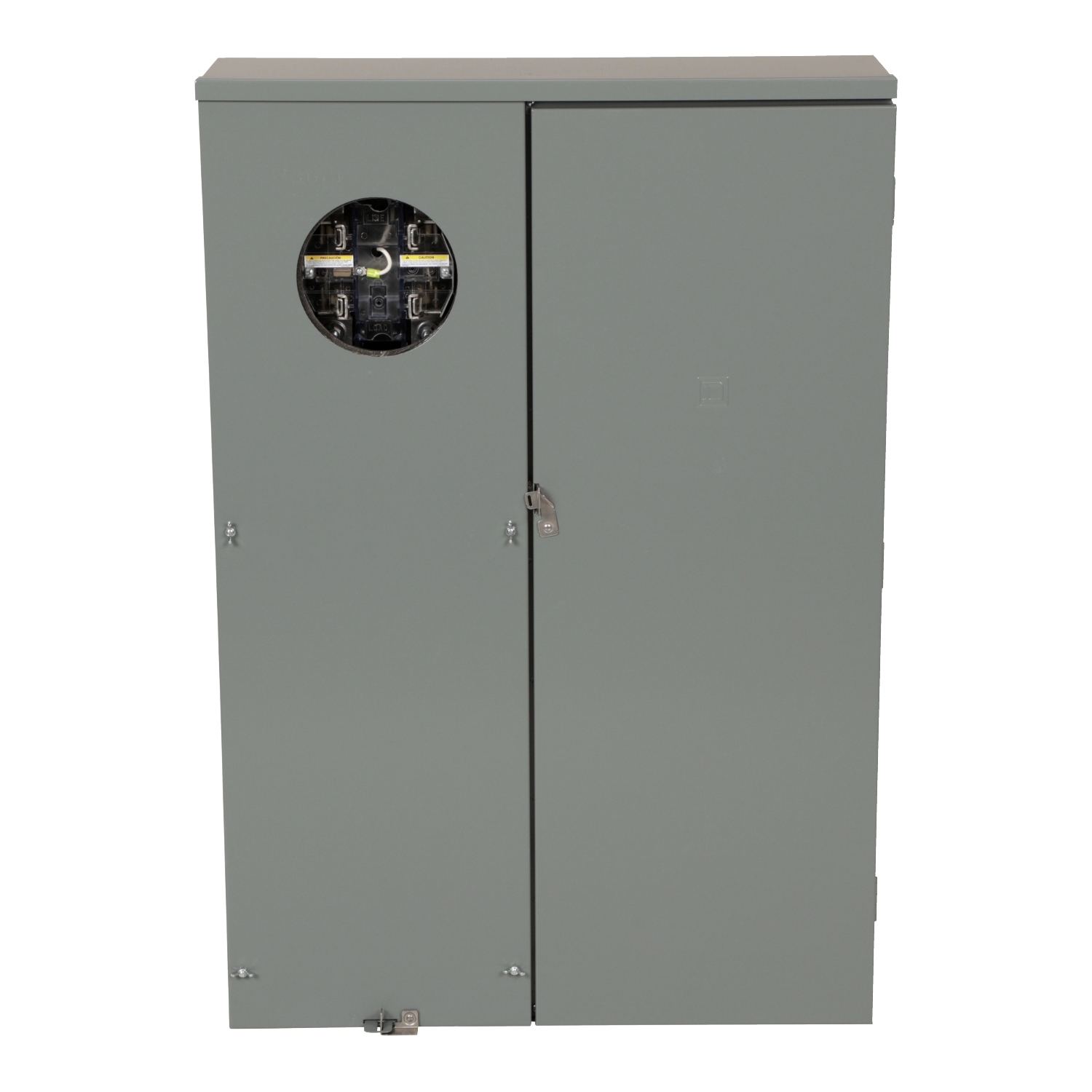

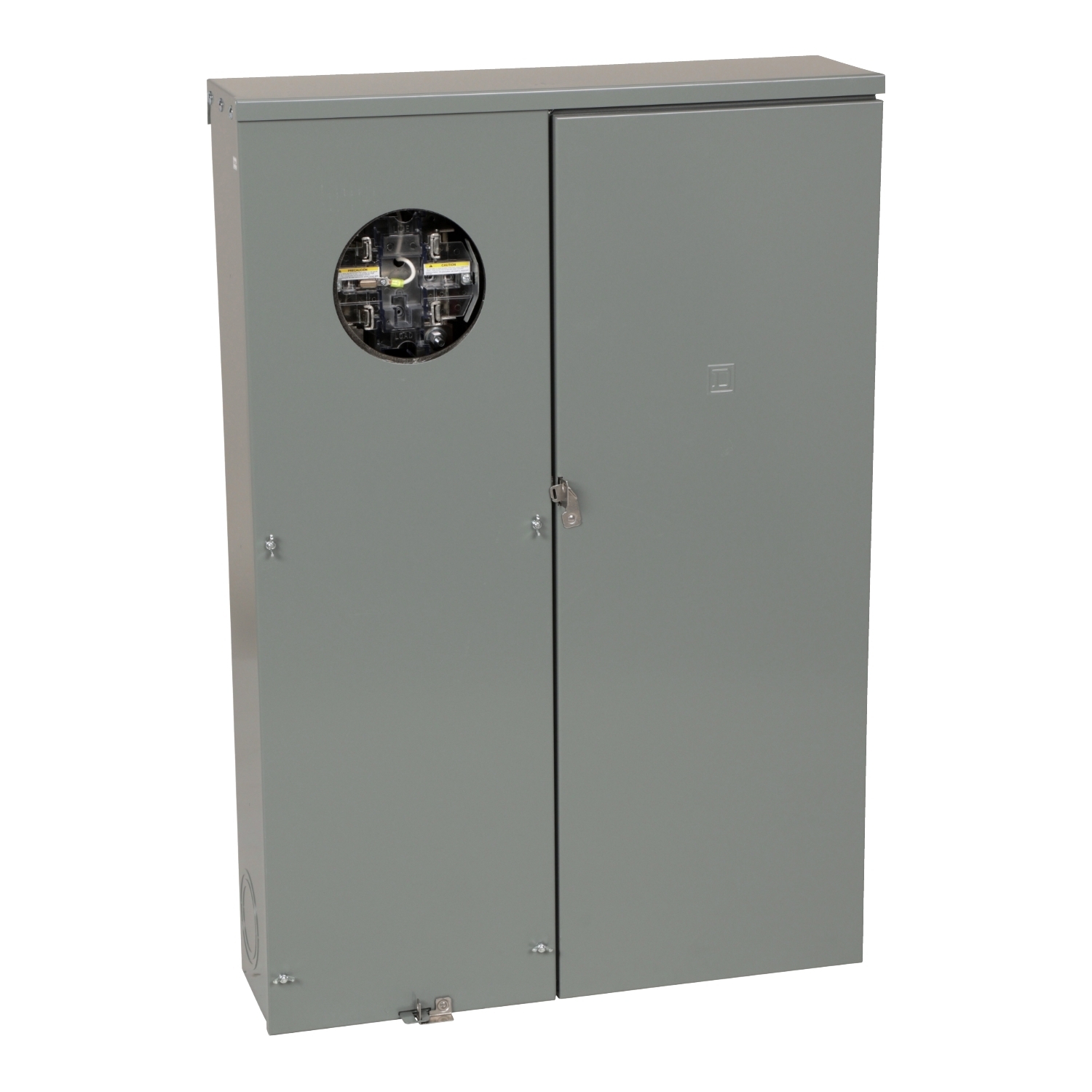

QU12L400SL QO Meter Main, CSED, 400 Amp, 1 Phase, Ringless, Lever, UG, 120/240V, Surface, max 12 Spaces, Class 320

MFR:
Schneider Electric
MFR #:
QU12L400SL
UPC:
785901645993
Item #:
15746

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, is rated at 400A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).

Manuals & Documentation
Catalog Number QU12L400SL
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Lever
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361679&lang=en-us
UPC 785901645993
GTIN 00785901645993
Width 28.25
Width UOM Inch
Height 43.0
Height UOM Inch
Depth 7.87 IN
