Discontinued

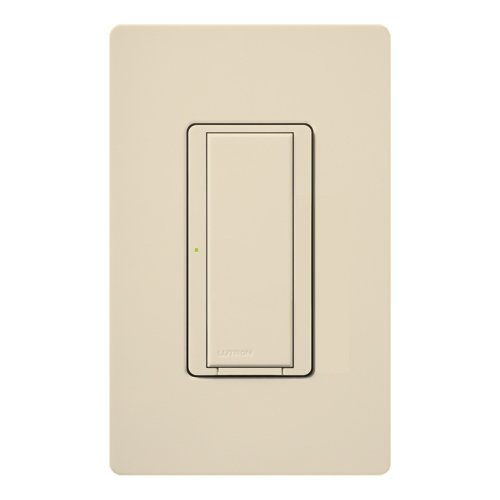

RRD-8ANS-ES RadioRA 2 Maestro Electronic Neutral Switch, 120 VAC, 8 A, 1 Poles, On/Off Operation, Eggshell
- MFR:
- Lutron Electronics
- MFR #:
- RRD-8ANS-ES
- UPC:
- 027557771634
- Item #:
- 157351
Discontinued
RRD-8ANS-ES RadioRA 2 Maestro Electronic Neutral Switch, 120 VAC, 8 A, 1 Poles, On/Off Operation, Eggshell
- MFR #:
- RRD-8ANS-ES
- UPC:
- 027557771634
- Item #:
- 157351
Manuals & Documentation
| Catalog Number | RRD-8ANS-ES |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Tapswitch |
| Application | Lighting Control |
| Color | Eggshell |
| Connection | Screw terminal |
| Contact Configuration | N-O |
| Contact Rating | 8/5.8 AMPS |
| Enclosure | Plastic |
| Insulation | Plastic |
| Material | Plastic/Metal |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads. Neutral wire required. Tap switch on/off. |
| Standard | UL, CSA, NOM, FCC, IC, COFETEL, ANATEL |
| UPC | 027557771634 |
| GTIN | 00027557771634 |
| Item Type | Wireless electronic switch, multi-location/single-pole |
| Size | 4.69 x 2.94 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Operating Temperature | 32 to 104 F |
| Voltage Rating | 120 |
| Wattage | 960/696 W |
