SQUARE D

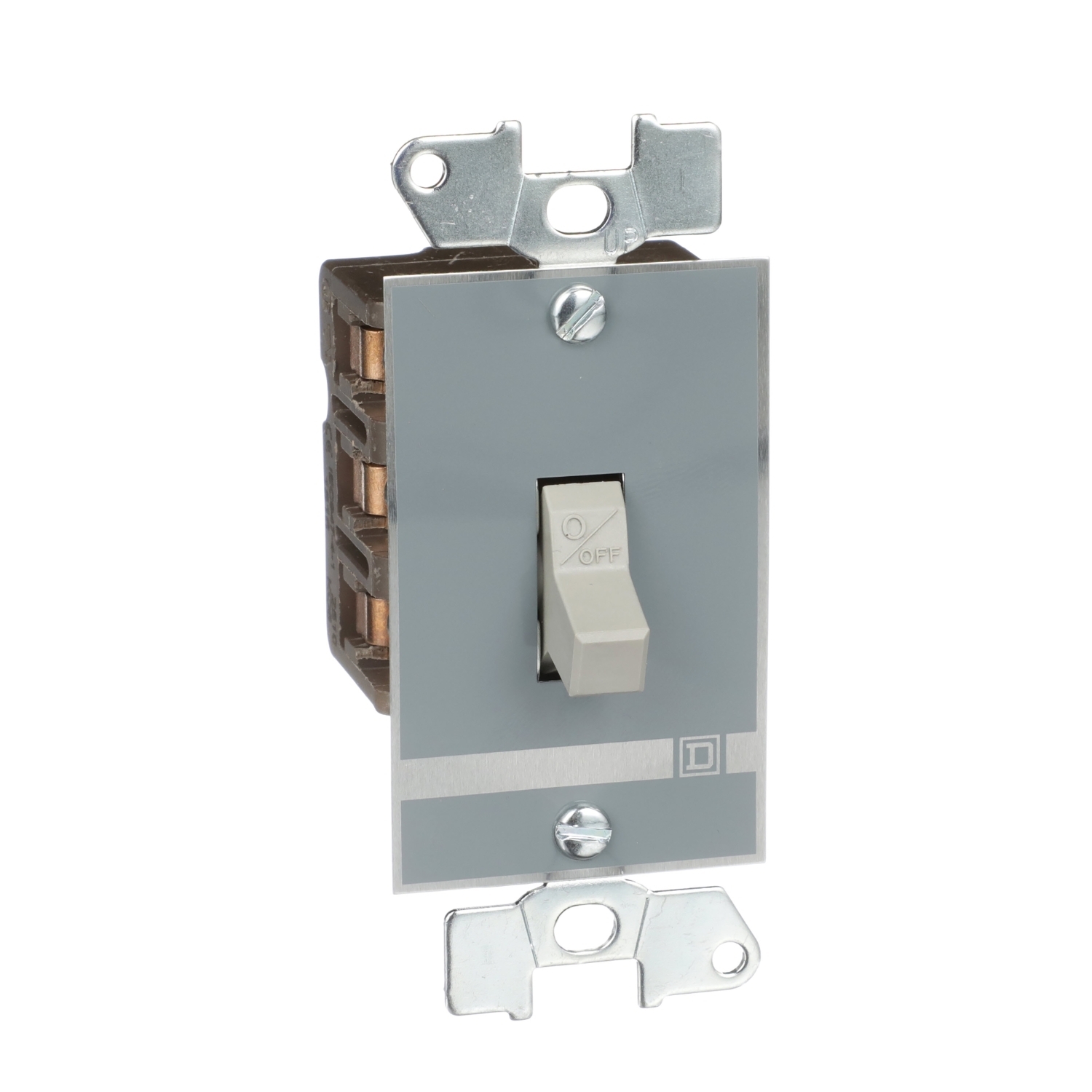

2510KO6 3-Phase Type K Single Unit Manual Switch, 600 V AC/230 V DC, 30 A, 1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VAC/115 VDC/7-1/2 hp at 230 VAC/230 VDC/600 VAC/15 hp at 460 VAC/20 hp at 575 VAC Power Rating

MFR:
Schneider Electric
MFR #:
2510KO6
UPC:
785901192701
Item #:
156846

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 15 HP at 460VAC, 20 HP at 600VAC three phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. This device is UL Listed and CSA certified.

Manuals & Documentation
Catalog Number 2510KO6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901192701
GTIN 00785901192701
Width 1.69
Width UOM Inch
Height 4.13
Height UOM Inch
Depth 2.34 IN
