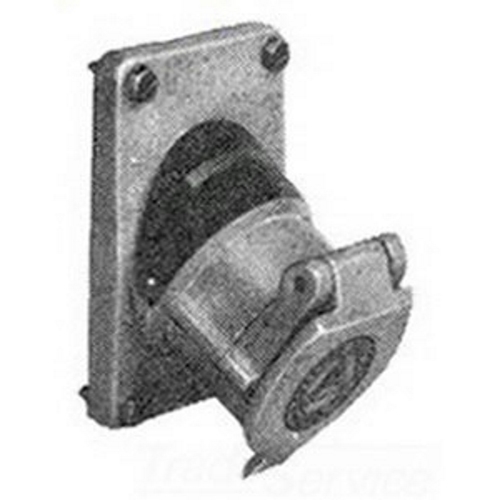

CPR Series Replacement Receptacle Cover Assembly, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 120 - 240 VAC, 24 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3RX, 7BCD, Mounting: Box, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat, Dimensions: 3 IN Width X 4.05 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, UL Standard: UL 1010 (UL 1203), UL Listed: E10784, E81751, CSA Standard: C22.2 No .25, C22.2 No .30, C22.2 No. 159, CSA Certified: 038644, For CPP Mating Plugs

Manuals & Documentation
Catalog Number CPR-23
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For CPP Mating Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3R
Number of Poles 3
Number of Wires 2
Special Features Delayed action construction; Insert plug partially rotate slide on front of receptacle and insert plug fully; Factory sealed: external seals not required; Energizes receptacle terminals deeply recessed to prevent accidental touching; Used in locations where damp or corrosive conditions exist, where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203); UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
UPC 781381198752
GTIN 00781381198752
Item Type CPR Series Replacement Receptacle Cover Assembly
Voltage Rating 120 - 240 VAC, 24 VDC
