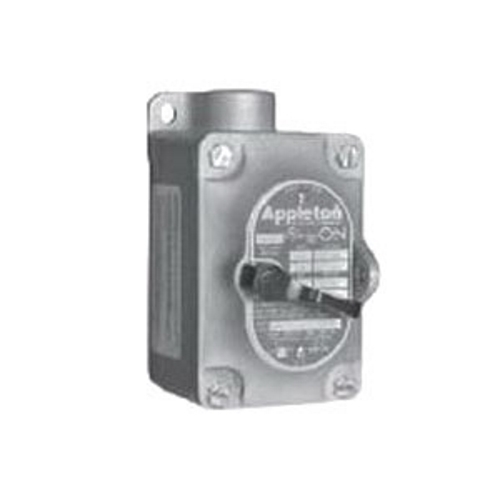

EFS150-F1 1-Gang Dead End Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA Rating
- MFR:
- Appleton Electric
- MFR #:
- EFS150-F1
- UPC:
- 781381278751
- Item #:
- 156028
EFS150-F1 1-Gang Dead End Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA Rating
- MFR #:
- EFS150-F1
- UPC:
- 781381278751
- Item #:
- 156028
EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.53 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Arcing Of Enclosed Switches In Ignitable Atmospheres During Connect And Disconnect Operation Of Lighting And Light Power Loads
Manuals & Documentation
| Catalog Number | EFS150-F1 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | For Arcing Of Enclosed Switches In Ignitable Atmospheres During Connect And Disconnect Operation Of Lighting And Light Power Loads |
| Enclosure | NEMA 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: Chemical plants, petrochemical plants, refineries, other process industries; For use in classified areas where ignitable vapors, gases or highly combustible dusts are present |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III |
| UPC | 781381278751 |
| GTIN | 00781381278751 |
| Item Type | EFS Series 1-Gang Tumbler Switch |
| Voltage Rating | 120 - 277 |
