AFC CABLE SYSTEMS

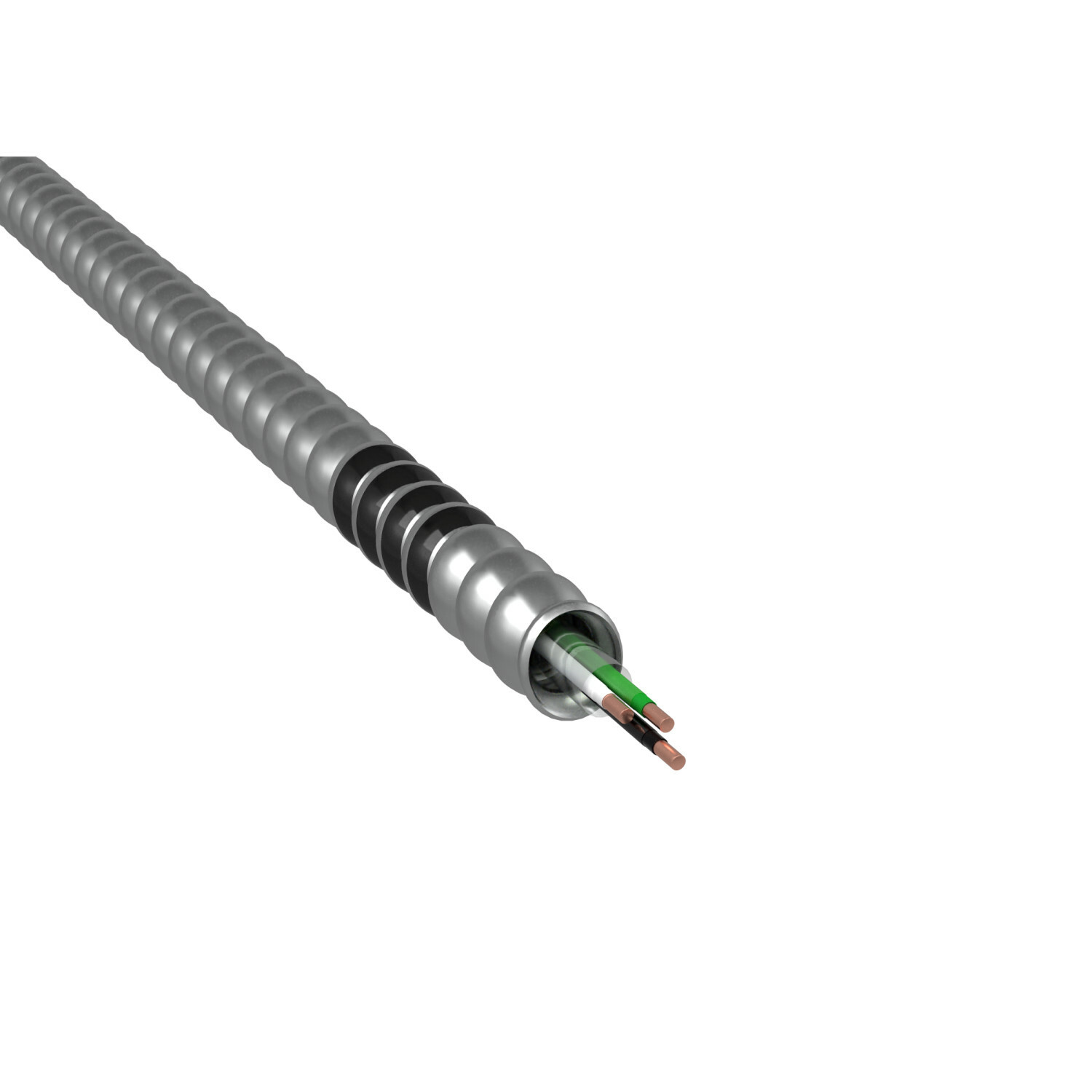

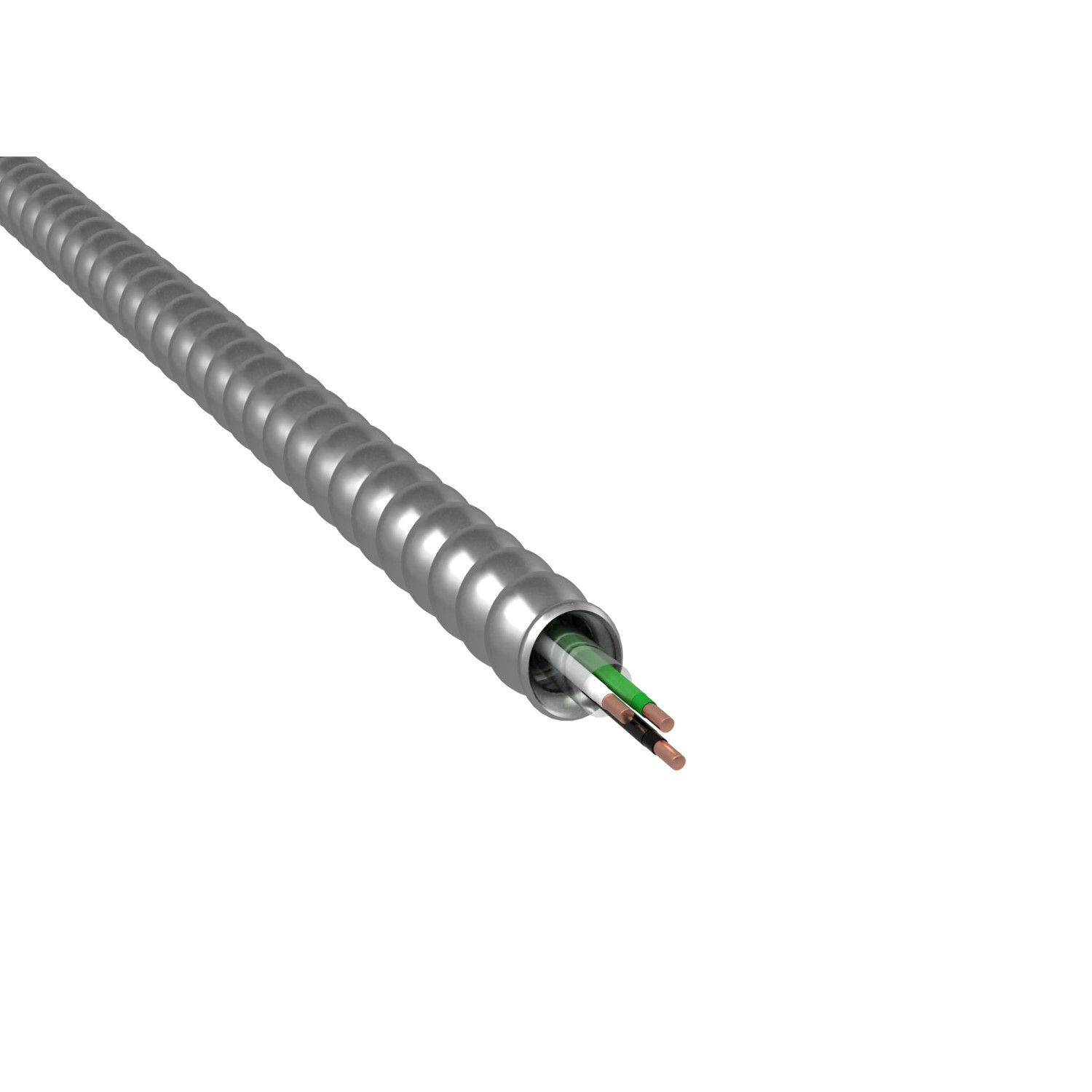

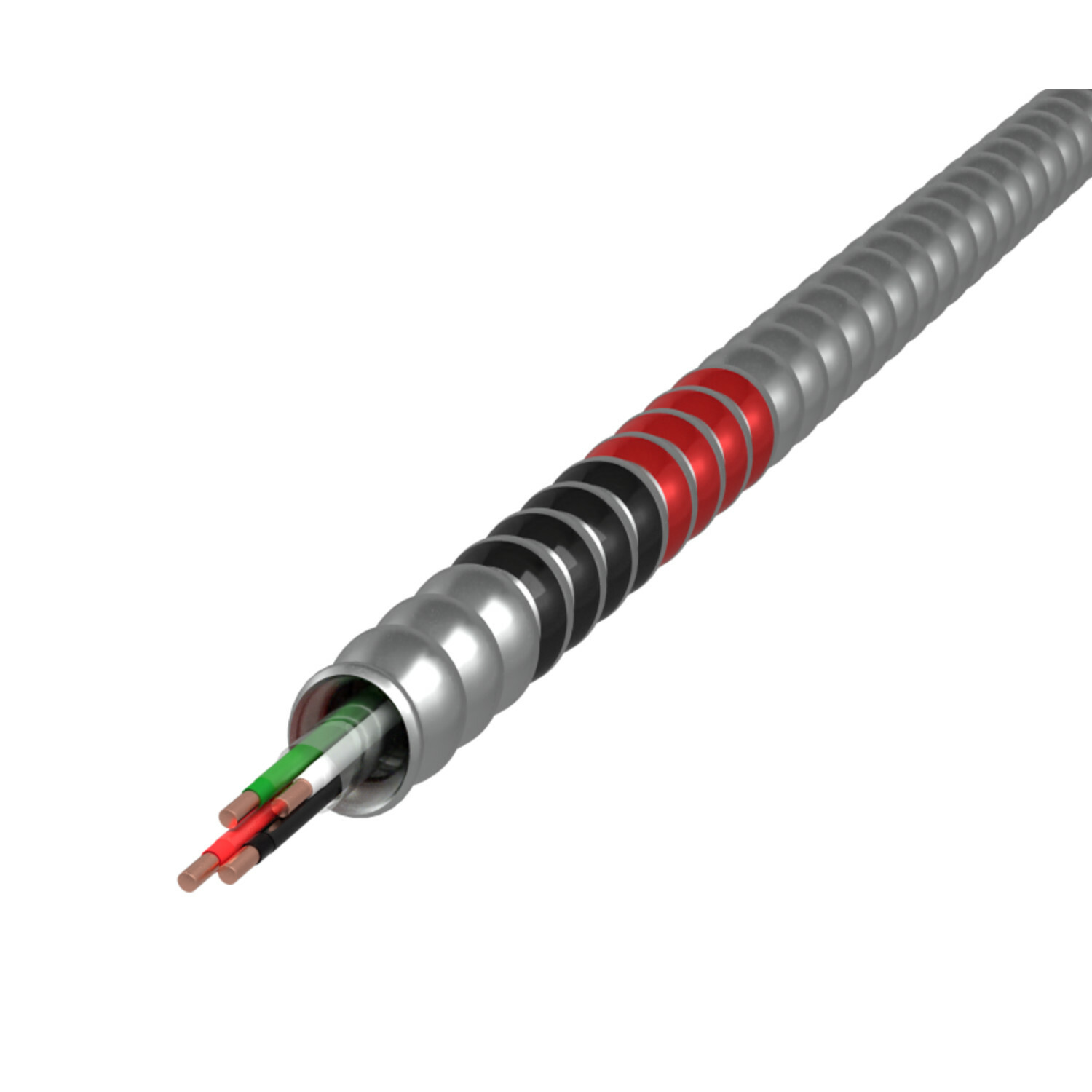

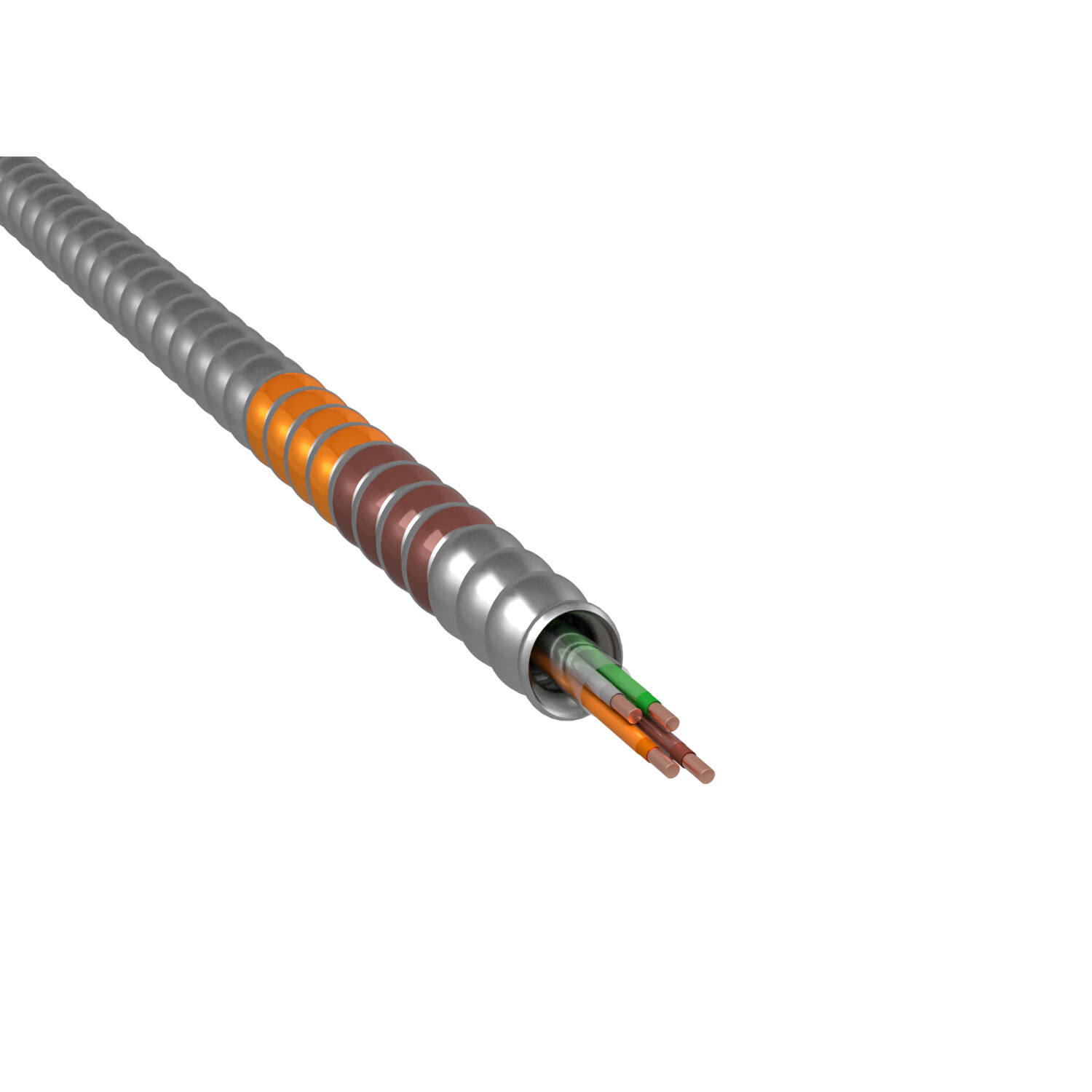

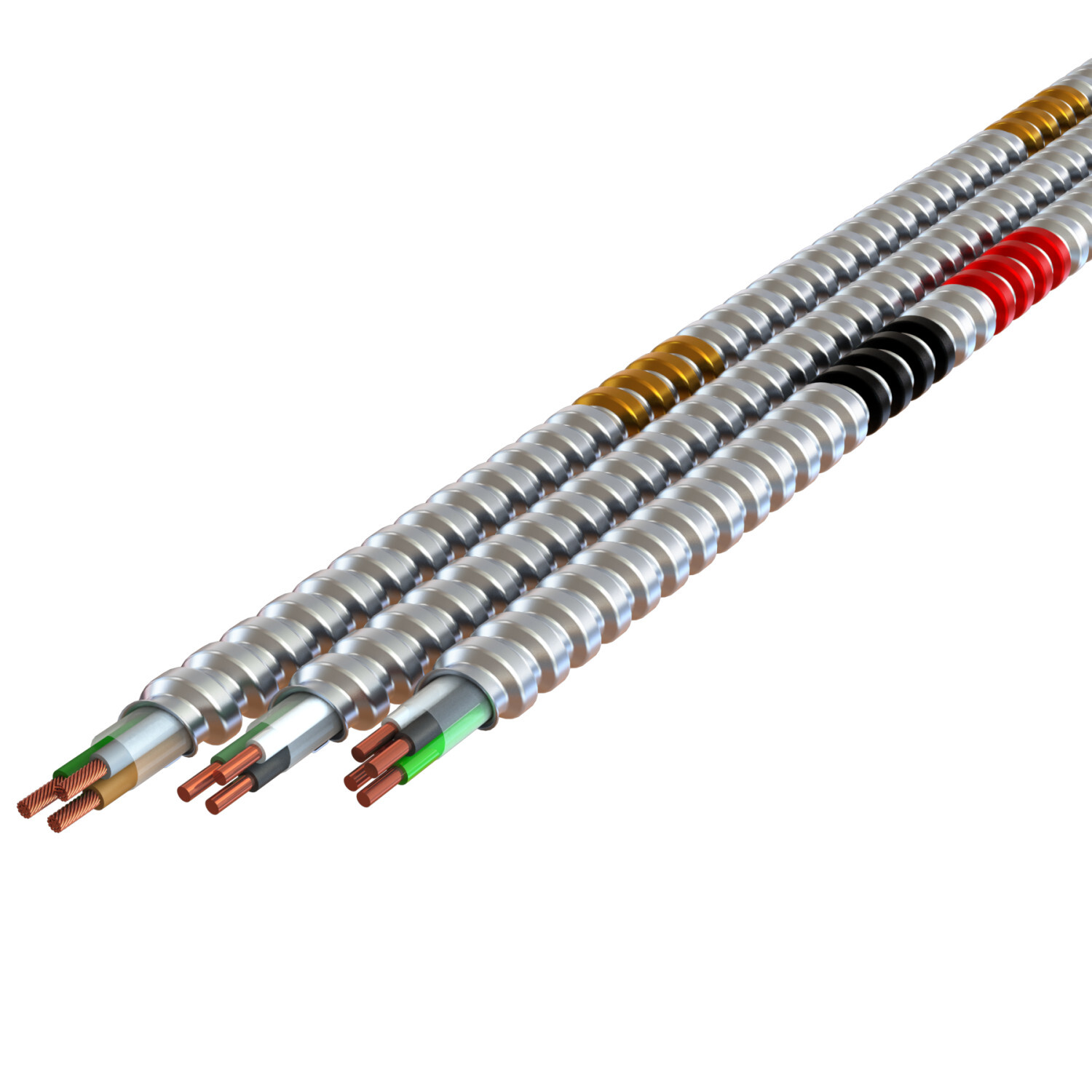

2162-60-00 MC Lite Type MC Traditional Metal Clad Armored Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (3) 10 AWG Stranded Copper Conductor, 1000 ft L

MFR:
ATKORE - AFC CABLE
MFR #:
2162-60-00
UPC:
077680160133
Item #:
155922

Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Manuals & Documentation
Catalog Number 2162-60-00
Manufacturer ATKORE - AFC CABLE
Brand AFC CABLE SYSTEMS
Country of Origin United States
Made in USA Yes
Armour Interlocked Aluminum Strip
Color Plain
Conductor Material Copper
Insulation Material THHN
Number of Conductors 4
Special Features May be surface mounted, fished and/or embedded in plaster; Cable tray rated, install per NEC; UL Classified 1, 2, and 3 hour through (Fire) penetration product, R-14141; Environmental air-handling space installation per NEC 300.22; Made in USA of US and/or imported materials
Standard UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant
UPC 077680160133
GTIN 00077680160133
Item Type Traditional Type MC Cable With Ground And Neutral
Length 1000
Length UOM Foot
Weight 0.2052 LB/FT
Outside Diameter 0.658 IN
Temperature Rating 90
Voltage Rating 600V
