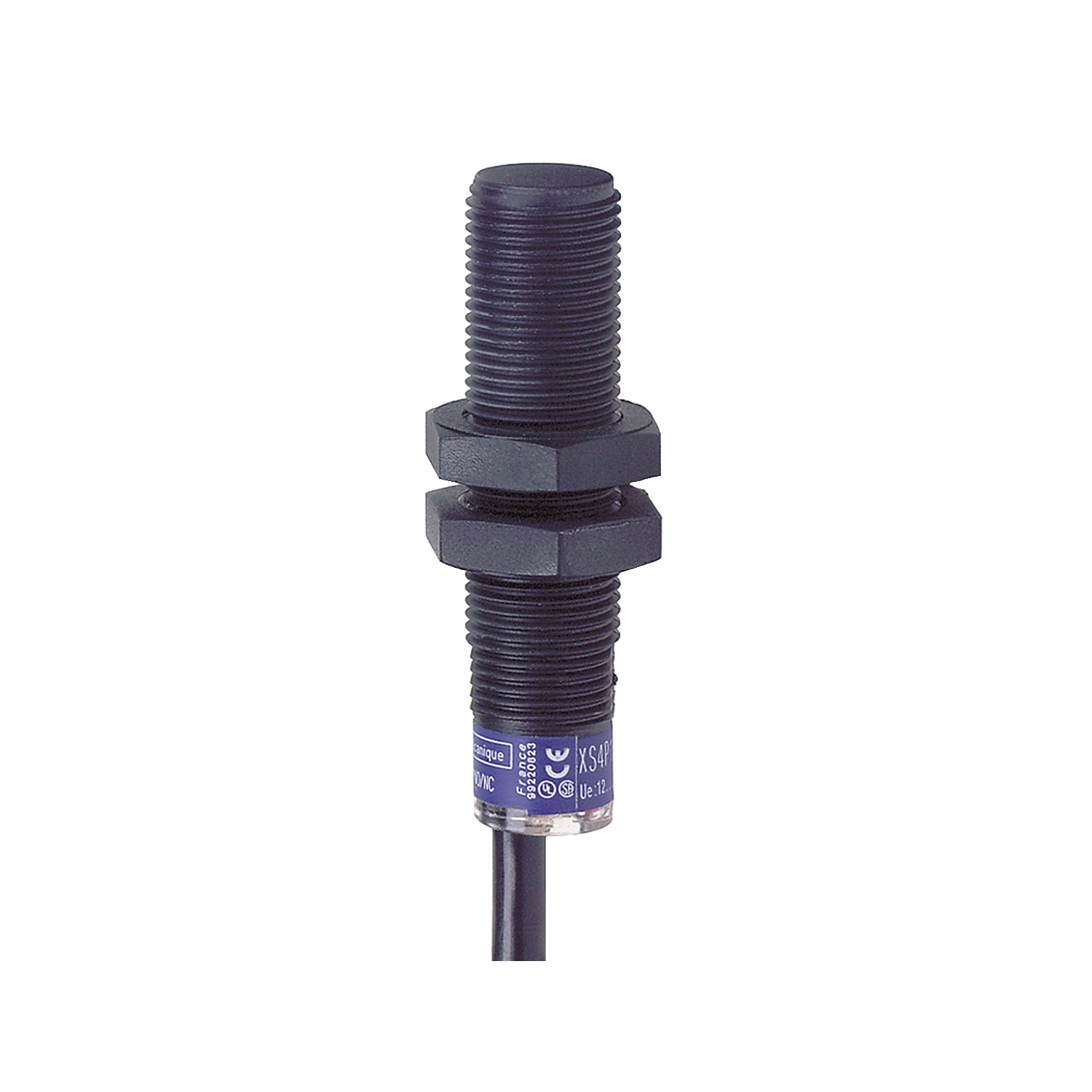

XS4P12MA230 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 V AC/24 to 240 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS4P12MA230
- UPC:
- 785901314400
- Item #:
- 155340
XS4P12MA230 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 V AC/24 to 240 V DC
- MFR #:
- XS4P12MA230
- UPC:
- 785901314400
- Item #:
- 155340
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 4mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified.
Manuals & Documentation
| Catalog Number | XS4P12MA230 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Control Output | 1 NO |
| Enclosure | IP68 DOUBLE INSULATION CONFORMING TO IEC 60529 |
| Indicator | Output state 1 LED yellow) |
| Sensing Range | 4 MM |
| Sensor | 52 MM |
| Special Features | IP68 DOUBLE INSULATION CONFORMING TO IEC 60529 |
| Standard | IP68 double insulation conforming to IEC 60529;CE |
| Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=868882&lang=en-us |
| UPC | 785901314400 |
| GTIN | 03389110912920 |
| Item Type | INDUCTIVE PROXIMITY SENSOR |
| Operating Temperature | -13...158 F (-25...70 C) |
