XAPG29202 Harmony 2-Cutout Empty Control Station Enclosure, For Use With XAPG 22 mm Control and Signaling Unit, 4/13/IP65/IP657 NEMA Rating, -25 to 70 deg C, Die Cast Zinc, Gray

MFR:
Schneider Electric
MFR #:
XAPG29202
Item #:
155203

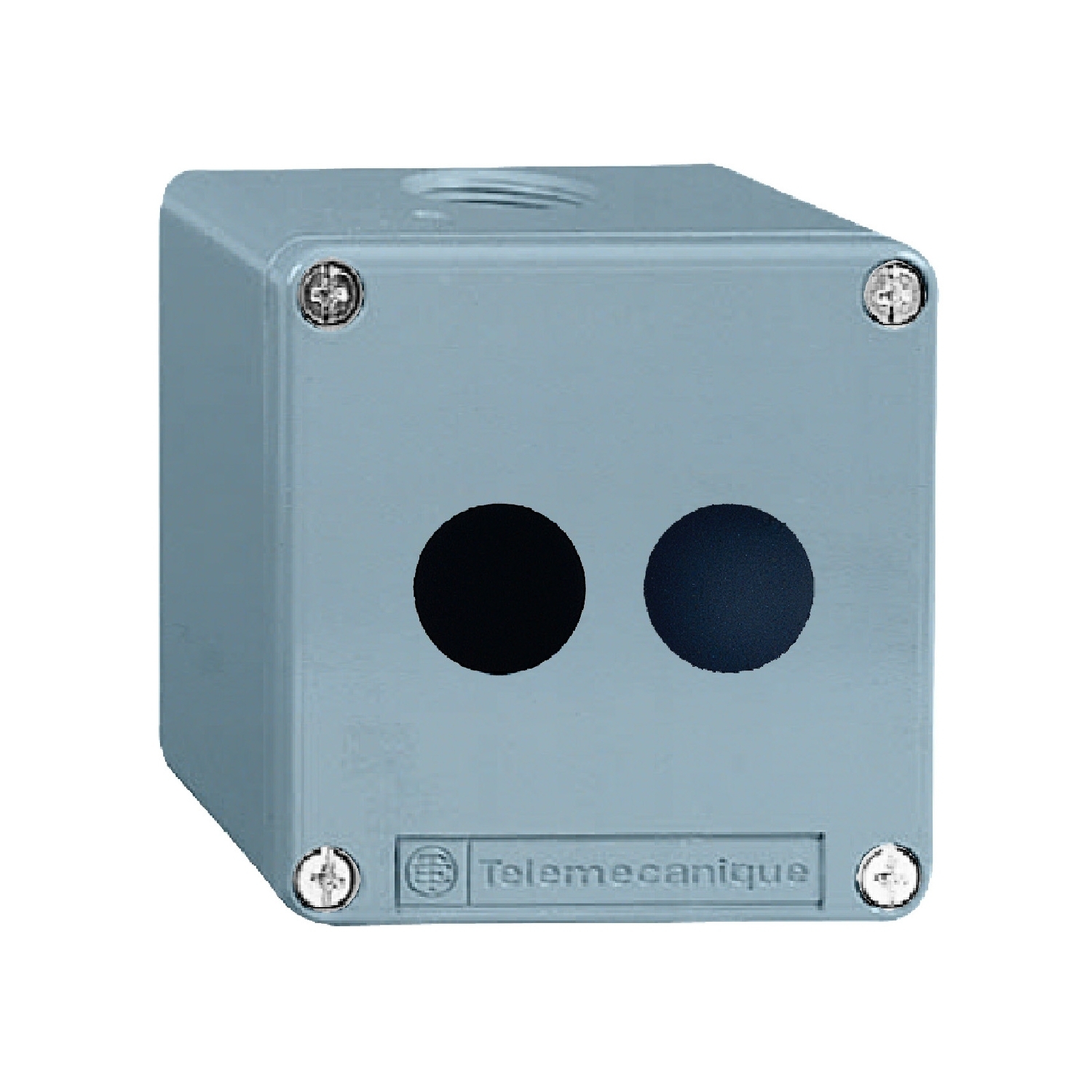

XAPG 22mm enclosures are for industrial applications. These empty enclosures can be used with push buttons and pilot lights from the XB4 metal or XB5 plastic push button ranges. This grey die cast zinc alloy enclosure has openings for two operators. The spacing of the operator holes allows the enclosure vertically and have enough electrical clearance to mount the operators properly. The enclosure is NEMA 4 and 13 rated. Enclosure is 5.12 inches tall, 3.15 inches wide and 2.03 inches deep. The relay weighs 0.66 lbs. Enclosure is UL Listed and CSA certified. "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "This product is certified by CSA." "It is compatible with the XB4 range 22mm control and signaling units." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."

Manuals & Documentation
Catalog Number XAPG29202
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Morocco
Made in USA No
Material Die cast zinc
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=672472&lang=en-us
GTIN 03389118381858
