DNFR14-206FIB-L Pan-Term Type DNFR-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
- MFR:
- Panduit
- MFR #:
- DNFR14-206FIB-L
- UPC:
- 074983120253
- Item #:
- 154889
DNFR14-206FIB-L Pan-Term Type DNFR-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
- MFR #:
- DNFR14-206FIB-L
- UPC:
- 074983120253
- Item #:
- 154889

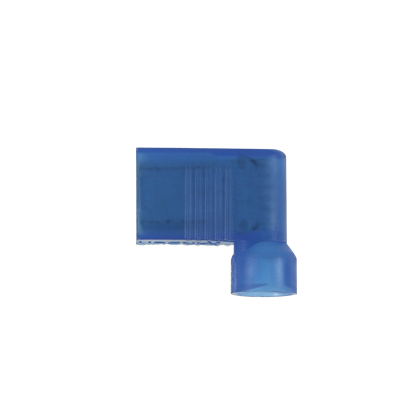

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.205/0.187 x 0.020 (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.58 (14.7 mm) long, 0.37 (9.4 mm) wide, and has a depth of 0.60 (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DNFR14-206FIB-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983120253 |
| GTIN | 00074983120253 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
| Cross Reference Products | ABBInstall RBD14-188A|ABBInstall RBD1887F|Molex 19006-0015|Molex 19007-0029|Morris 12438|Panduit DNFR14-206B-L|Panduit DNFR14-206FIB-L|Teledyne FR6B-187F|ThomasBett RBD14-188A|ThomasBett RBD1887F |
