Appleton

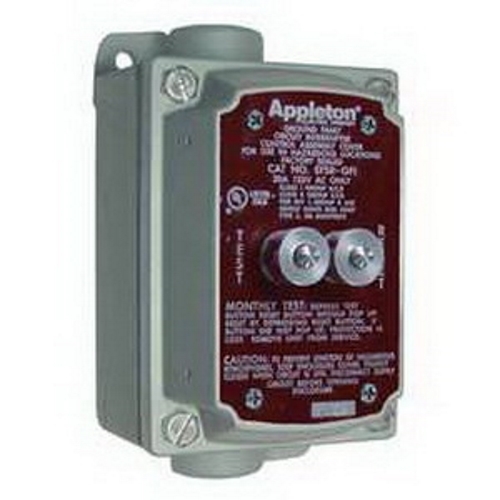

EFSC175GFI EFSR-GFI Factory Sealed Feed-Through GFCI Receptacle, 125 V AC, 20 A, 3 Poles, 2 Wires, Gray

MFR:
Appleton Electric
MFR #:
EFSC175GFI
UPC:
781381671132
Item #:
154498

EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 MILAMP Trip Setting, Enclosure: NEMA 3, 3R, 7BCD, 9EFG, Material: Malleable Iron, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Standard: Class I, Group B, Class I, Groups C, D, Class II, Groups E, F, G, Class III, UL Listed: E81751, UL Standard: 943, 1203, For U-Line 20 AMP Receptacles

Manuals & Documentation
Catalog Number EFSC175GFI
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For U-Line 20 AMP Receptacles
Enclosure NEMA 3, 3R, 7BCD, 9EFG
Special Features GFI cover and box; 5 MILAMP Trip setting; Provides required ground fault protection for portable electrically-operated devices; For ground fault protection in hazardous locations; Well suited for use in highly corrosive atmospheres and wet locations; Factory sealed construction; No external seals are required; Arcing is confined within the device's interior sealed chamber; Smooth-operating test and reset buttons; Can be installed in standard EFD Series mounting boxes; Cover bolts,test and reset buttons and shafts are made up of stainless steel
Standard Class I, Group B; Class I, Groups C, D; Class II, Groups E, F, G; Class III; UL Listed: E81751; UL Standard: 943, 1203
UPC 781381671132
GTIN 00781381671132
Item Type EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter
Voltage Rating 125
