Square D

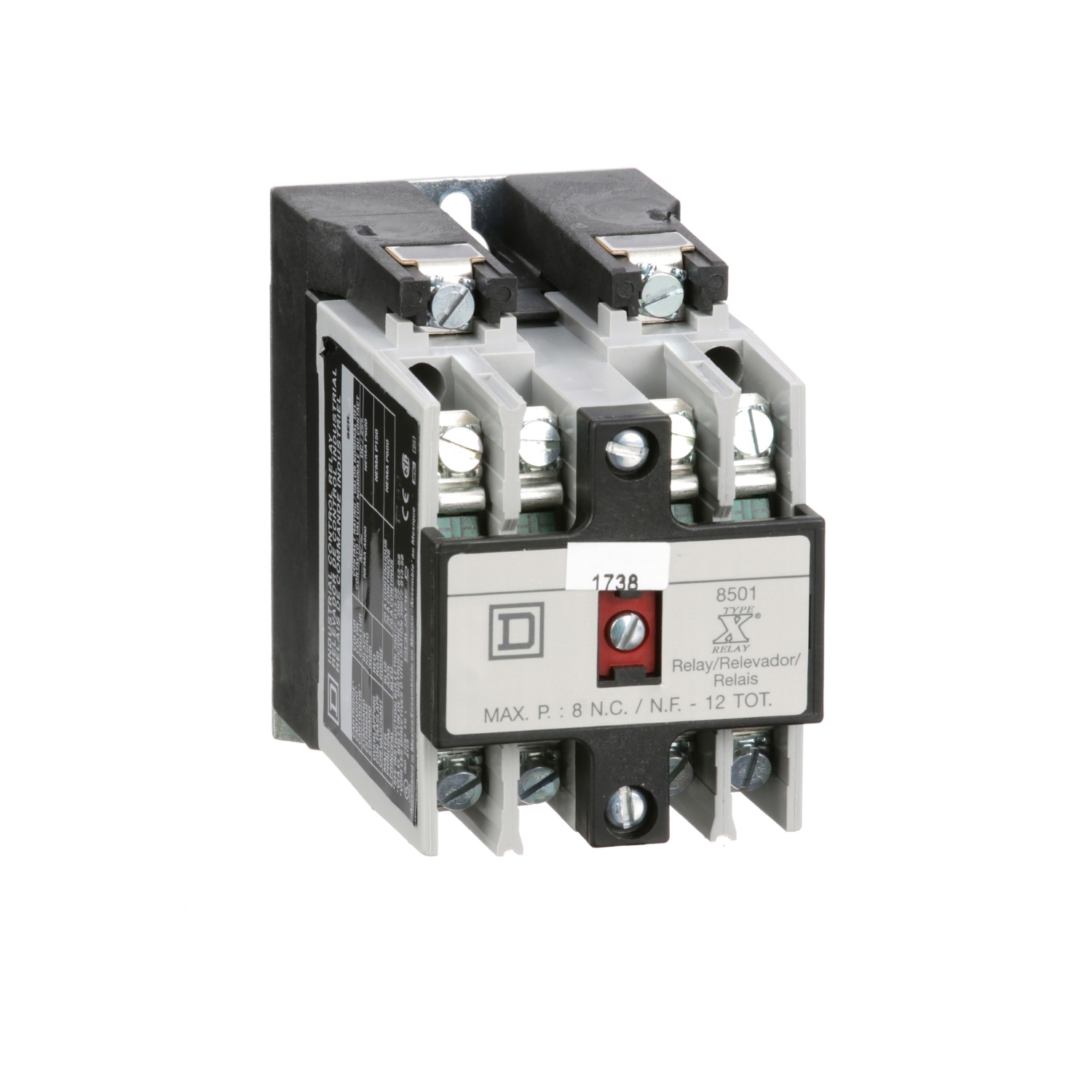

8501XO30V02 Type X NEMA Control Relay, 10 A AC/5 A DC, 3NO 3 Form A Contact, 110 to 120 VAC V Coil

MFR:
Schneider Electric
MFR #:
8501XO30V02
UPC:
785901001225
Item #:
154218

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with three 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The three plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable coil. Relay is UL listed and CSA certified.

Manuals & Documentation
Catalog Number 8501XO30V02
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Connection Screw clamp terminals;AWG 18...AWG 12 copper
Contact Configuration 3 NO 3 standard contact cartridges
Mounting Panel Mount
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=368857&lang=en-us
UPC 785901001225
GTIN 00785901001225
Item Type Relay;Control
Width 2.23
Width UOM Inch
Height 3.5
Height UOM Inch
Depth 3.95 IN
