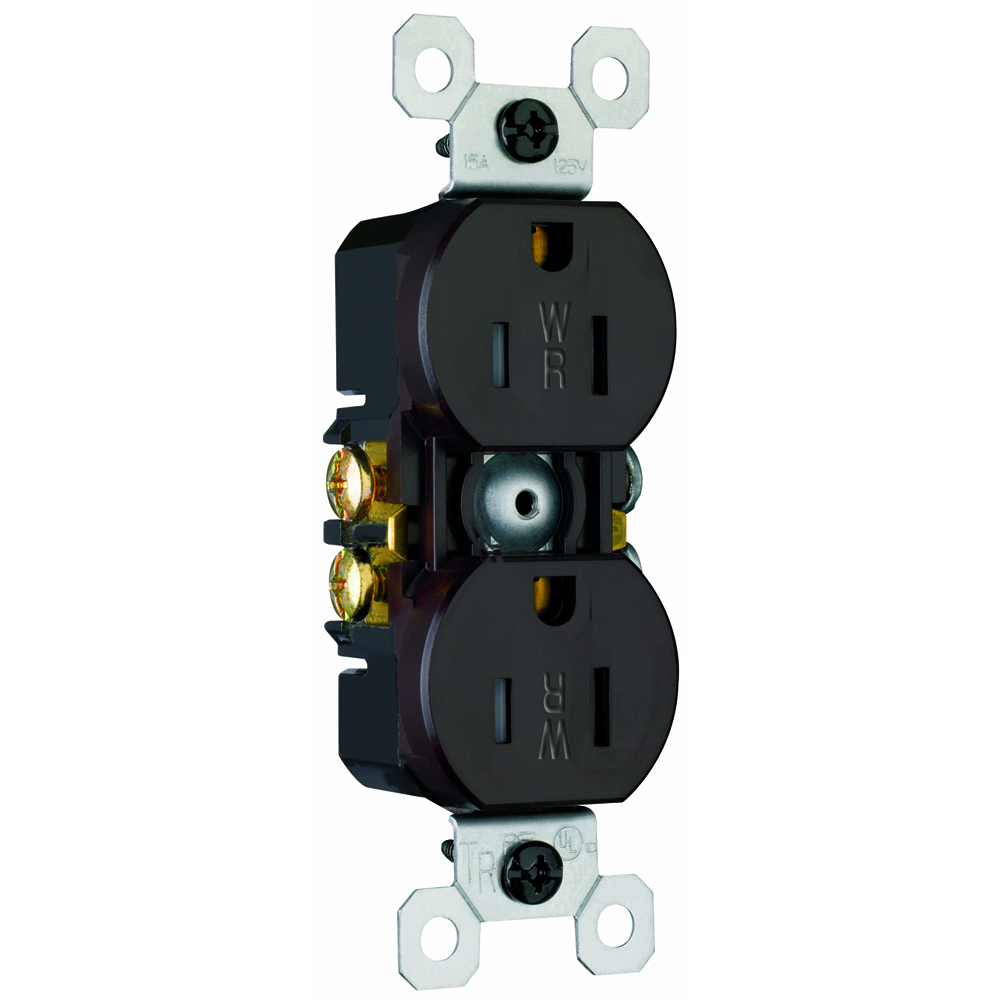

15A/125A Duplex Receptacle,

Catalog Number 3232TRWR
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial;Residential
Color Brown
Connection Side wire, push wire
Material Thermoplastic
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Weather-Resistant receptacles are Tamper-Resistant as required by National Electrical Code®. Meets National Electrical Code® Weather-Resistant requirements and Tamper-Resistant requirements. Protects children: patented shutter system helps prevent improper insertion of foreign objects. Listed to the Weather-Resistant supplement of UL498. High-impact resistant thermoplastic construction. Low profile face. Side wire accepts #12 – #14 AWG solid wire. Push wire accepts #14 AWG solid only. “TR” markings on strap per UL Tamper-Resistant requirements. “WR” markings on face per UL Weather-Resistant requirements. Traditional contoured face. Safer and more effective than traditional plastic outlet caps or protection plates. Extra-long strap. Quickloop wire looping aid. Long-term blade retention.
Standard cULus UL498, CSA C22.2 No. 42
UPC 785007241747
GTIN 00785007241747
Item Type Weather-Resistant Receptacle
Size 1.320 L x 1.0 W x 4.20 H
Temperature Rating -30° - 60° C
Voltage Rating 125
Wire Size 14 - 12 AWG
