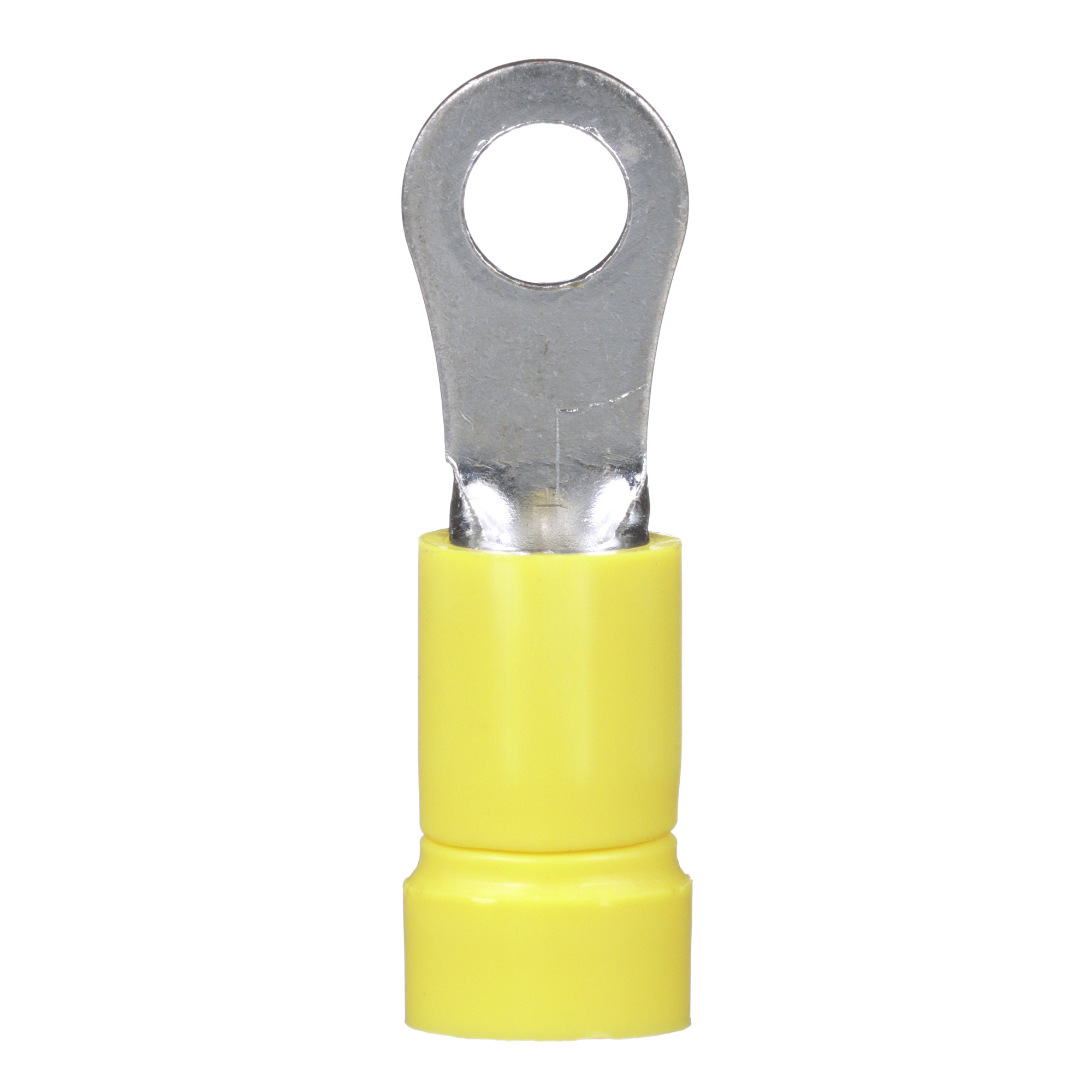

PV10-8R-D Pan-Term Type PV-R Loose Piece Ring Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- PV10-8R-D
- UPC:
- 074983801312
- Item #:
- 153059
PV10-8R-D Pan-Term Type PV-R Loose Piece Ring Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR #:
- PV10-8R-D
- UPC:
- 074983801312
- Item #:
- 153059
The PV10-8R-D Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV10-8R-D |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983801312 |
| GTIN | 00074983801312 |
| Item Type | Ring Terminal |
| Size | #8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
