SQUARE D

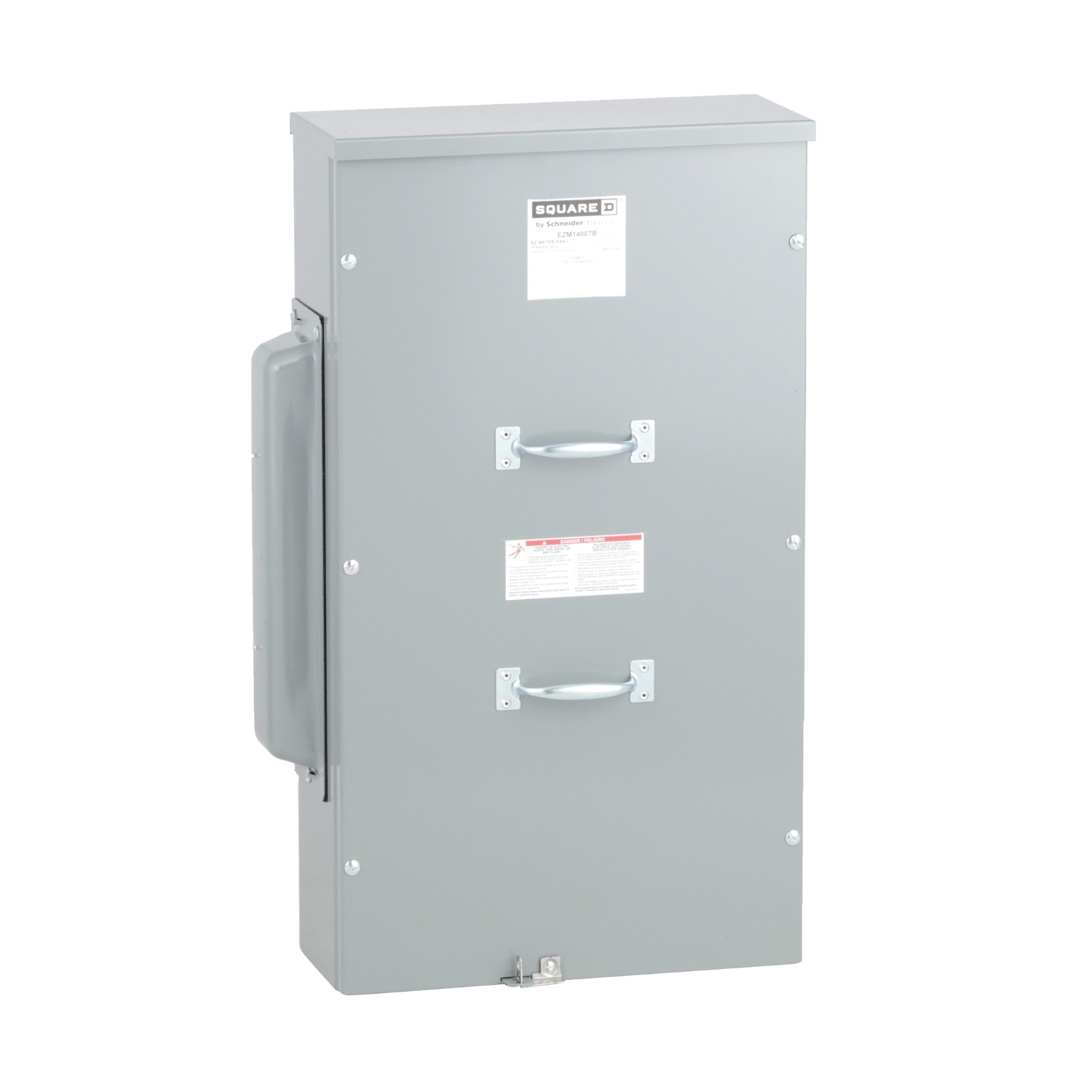

EZM1400TB Main Unit, EZ Meter Pak, 400 Amp, 120/240V, 1 Phase, 3 Wire, Aluminum Busbar, Main Lugs, Terminal Box, OH, UG

MFR:
Schneider Electric
MFR #:
EZM1400TB
UPC:
785901304852
Item #:
152782

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH or UG feeds. The unit is rated for 400A with the busbar rated for 800A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Manuals & Documentation
Catalog Number EZM1400TB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Review
Enclosure Painted steel
Mounting Surface
Phase 1
Special Features Main Lugs
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357467&lang=en-us
UPC 785901304852
GTIN 00785901304852
Item Type Meter center main unit
Width 17.0
Width UOM Inch
Height 30.46
Height UOM Inch
Depth 6.53 IN
