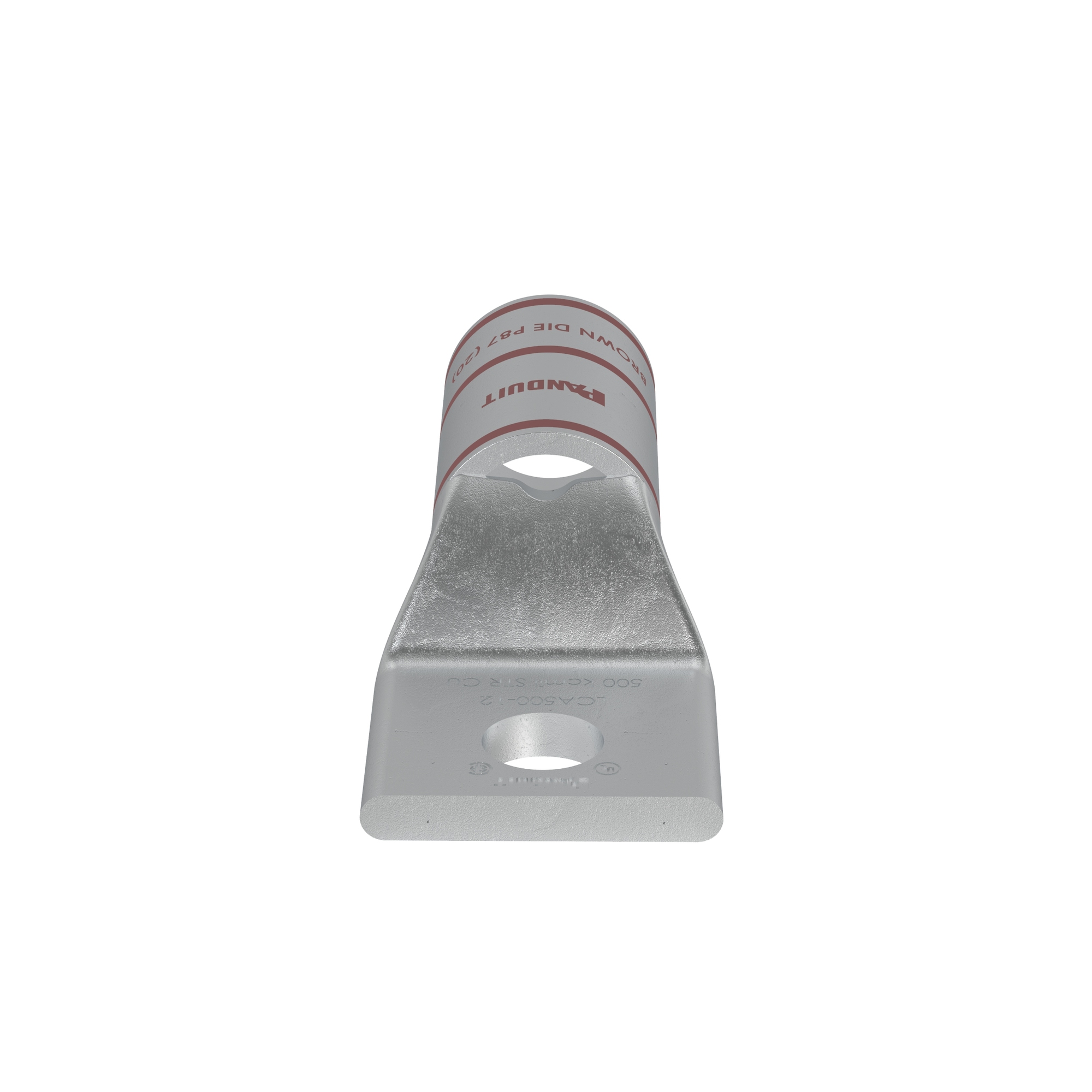

LCA500-12-6 Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCA500-12-6
- UPC:
- 074983900640
- Item #:
- 152484
LCA500-12-6 Pan-Lug 1-Hole Compression Lug Connector With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Tin Plated Copper
- MFR #:
- LCA500-12-6
- UPC:
- 074983900640
- Item #:
- 152484
The LCA500-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | LCA500-12-6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Brown |
| Material | Tin-Plated Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983900640 |
| GTIN | 00074983900640 |
| Item Type | Compression Lug |
| Size | 500 kcmil Code |
| Stud Size | 1/2 IN |
