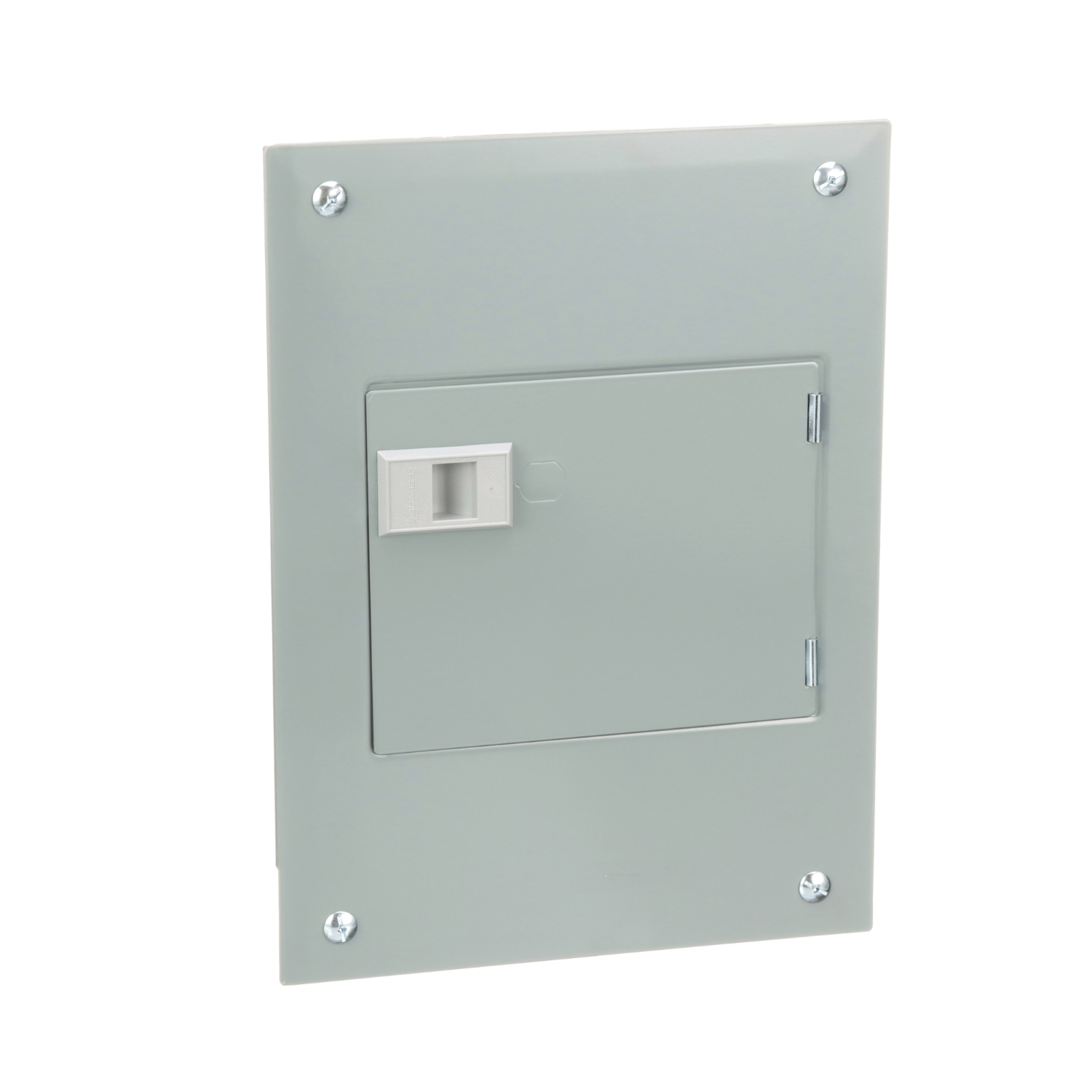

QO816L100DF 1-Phase Fixed Main Lug Loadcenter, 120/240 V AC, 100 A, 16 Poles, 10 kA Interrupt
- MFR:
- Schneider Electric
- MFR #:
- QO816L100DF
- UPC:
- 785901785699
- Item #:
- 152290
QO816L100DF 1-Phase Fixed Main Lug Loadcenter, 120/240 V AC, 100 A, 16 Poles, 10 kA Interrupt
- MFR #:
- QO816L100DF
- UPC:
- 785901785699
- Item #:
- 152290
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door flush cover, and is UL rated.
Manuals & Documentation
| Catalog Number | QO816L100DF |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Cable Size | AWG 8...AWG 1 aluminium/copper |
| Cover Type | Flush cover with door |
| Enclosure | Baked enamel Gray;Welded sheet steel;4 |
| Phase | 1 |
| Special Features | Tin plated aluminium: busbar |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360997&lang=en-us |
| UPC | 785901785699 |
| GTIN | 00785901785699 |
| Item Type | Load Center |

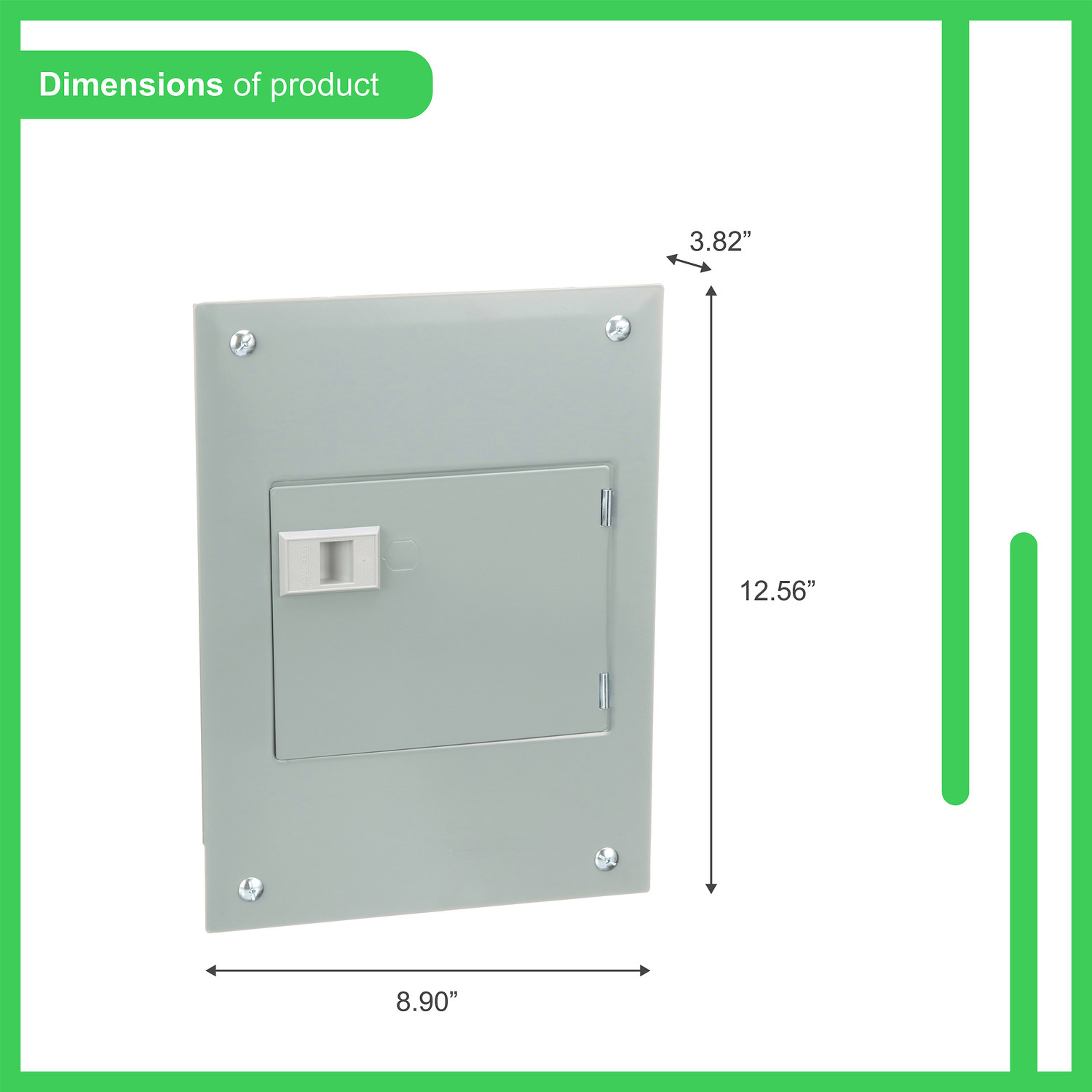

| Depth | 3.74020 IN |
