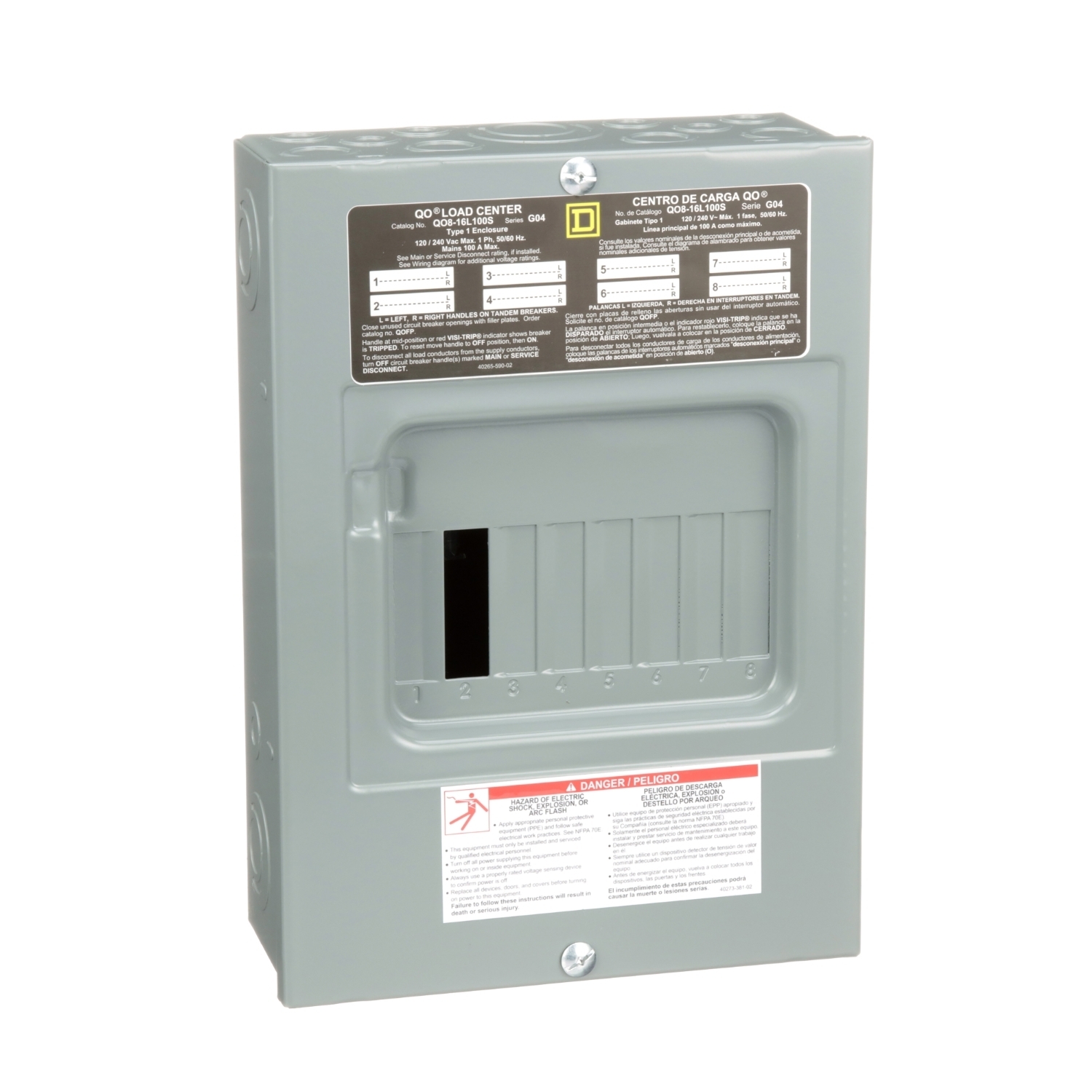

QO816L100S Fixed Main Lug Load Center, 100 Amp, 120/240V, 1 Phase, 8 Space, 16 Circuit, Surface Without Door

MFR:
Schneider Electric
MFR #:
QO816L100S
UPC:
785901785682
Item #:
152280

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. QO load center is UL Listed.

Manuals & Documentation
Catalog Number QO816L100S
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Cable Size AWG 8...AWG 1 aluminium/copper
Cover Type Surface cover
Enclosure Baked enamel Gray;Welded sheet steel;4
Phase 1
Special Features Tin plated aluminium: busbar
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361023&lang=en-us
UPC 785901785682
GTIN 00785901785682
Item Type Load Center
