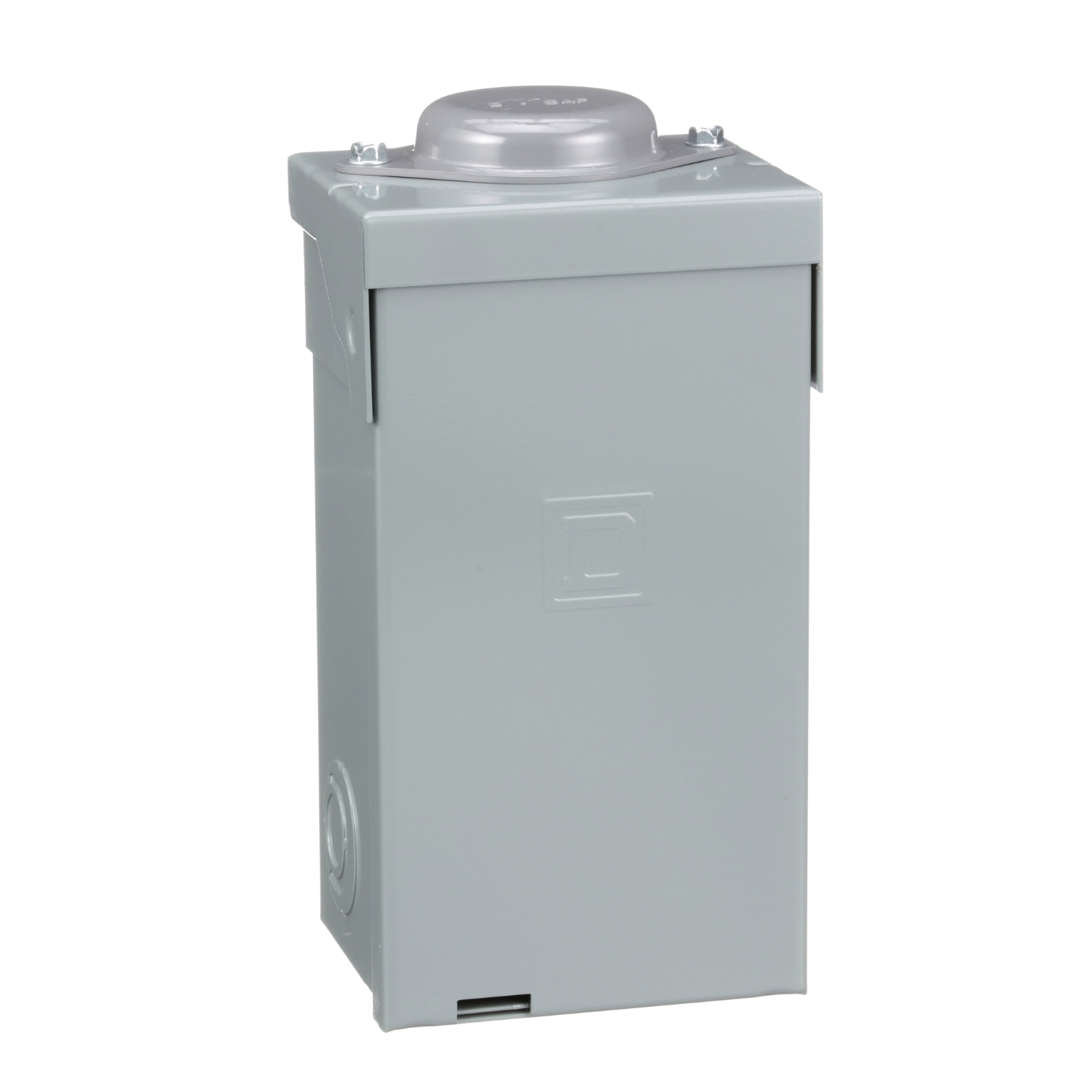

QO2L40RB 1-ph Fixed Main Lug Loadcenter, 120/240 V AC, 40 A, 2 Poles, 65 kA Interrupt
- MFR:
- Schneider Electric
- MFR #:
- QO2L40RB
- UPC:
- 785901785118
- Item #:
- 151484
QO2L40RB 1-ph Fixed Main Lug Loadcenter, 120/240 V AC, 40 A, 2 Poles, 65 kA Interrupt
- MFR #:
- QO2L40RB
- UPC:
- 785901785118
- Item #:
- 151484
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 40A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
Manuals & Documentation
| Catalog Number | QO2L40RB |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Cable Size | AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium |
| Cover Type | Surface cover |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;1R |
| Phase | 1 |
| Special Features | Tin plated aluminium: busbar |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360559&lang=en-us |
| UPC | 785901785118 |
| GTIN | 00785901785118 |
| Item Type | Load Center |
