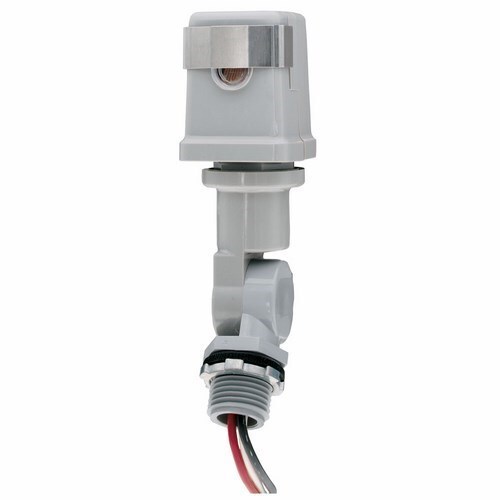

K4235 K4200 Stem and Swivel Mounting Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4235
- UPC:
- 078275042889
- Item #:
- 151295
K4235 K4200 Stem and Swivel Mounting Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR #:
- K4235
- UPC:
- 078275042889
- Item #:
- 151295
Manuals & Documentation
Features
- Discontinued
| Catalog Number | K4235 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 |
| Mounting | Stem And Swivel Fixed Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads |
| Standard | CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 480 |
| UPC | 078275042889 |
| GTIN | 00078275042889 |
| Item Type | Thermal Type Photo Cell |
| Size | 3 DIAMETER X 6-1/4 HEIGHT IN, 7.6 DIAMETER X 15.9 HEIGHT CM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Cross Reference Products | 2018 |
