Appleton

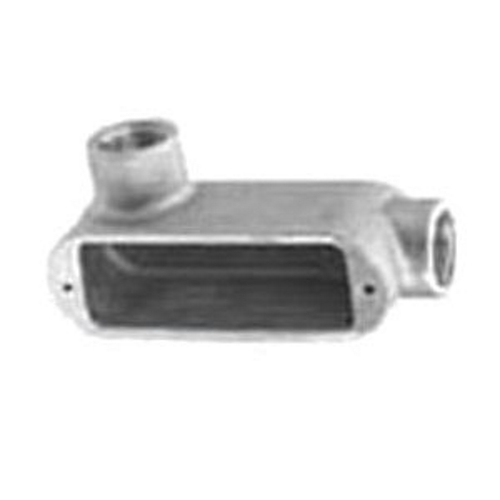

LL69 Unilets Type LL Conduit Outlet Body, 2 in Hub, Form 9, 82.8 cu-in, Copper Free Aluminum, Natural

MFR:
Appleton Electric
MFR #:
LL69
UPC:
781381094290
Item #:
150648

FM9 UNILETS Type LL Conduit Outlet Body, Hub Size: 2 IN, Form: 9, Length: 10.13 IN, Width: 4-1/4 IN, Height: 3-3/4 IN, Material: Aluminum, Finish: Natural Aluminum, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Num

Manuals & Documentation
Catalog Number LL69
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection Tapered Female Threaded
Finish Natural Aluminum
Form 9
Hub Size 2 IN
Material Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with crouse-hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; aluminum unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381094290
GTIN 00781381094290
Item Type Type LL Conduit Outlet Body
Length 10.13
Length UOM Inch
Width 4-1/4
Width UOM Inch
Height 3-3/4
Height UOM Inch
