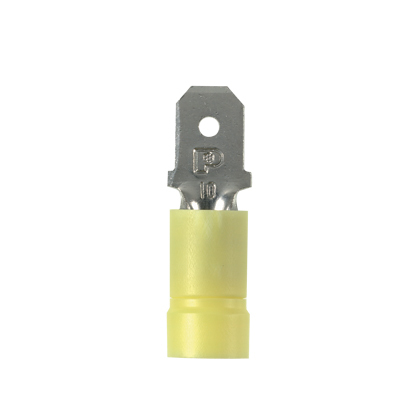

DV10-250M-L Pan-Term DV-M Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- DV10-250M-L
- UPC:
- 074983824106
- Item #:
- 150602
DV10-250M-L Pan-Term DV-M Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR #:
- DV10-250M-L
- UPC:
- 074983824106
- Item #:
- 150602
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm). It is 0.98 (24.9 mm) long and 0.25 (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a brazed seam barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DV10-250M-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | funnel Entry |
| Finish | Nickel-Plated |
| Insulation | Vinyl |
| Material | Copper |
| UPC | 074983824106 |
| GTIN | 00074983824106 |
| Item Type | Disconnect |
| Temperature Rating | 194 Degrees Fahrenheit (90 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
