Discontinued
SCHNEIDER ELECTRIC

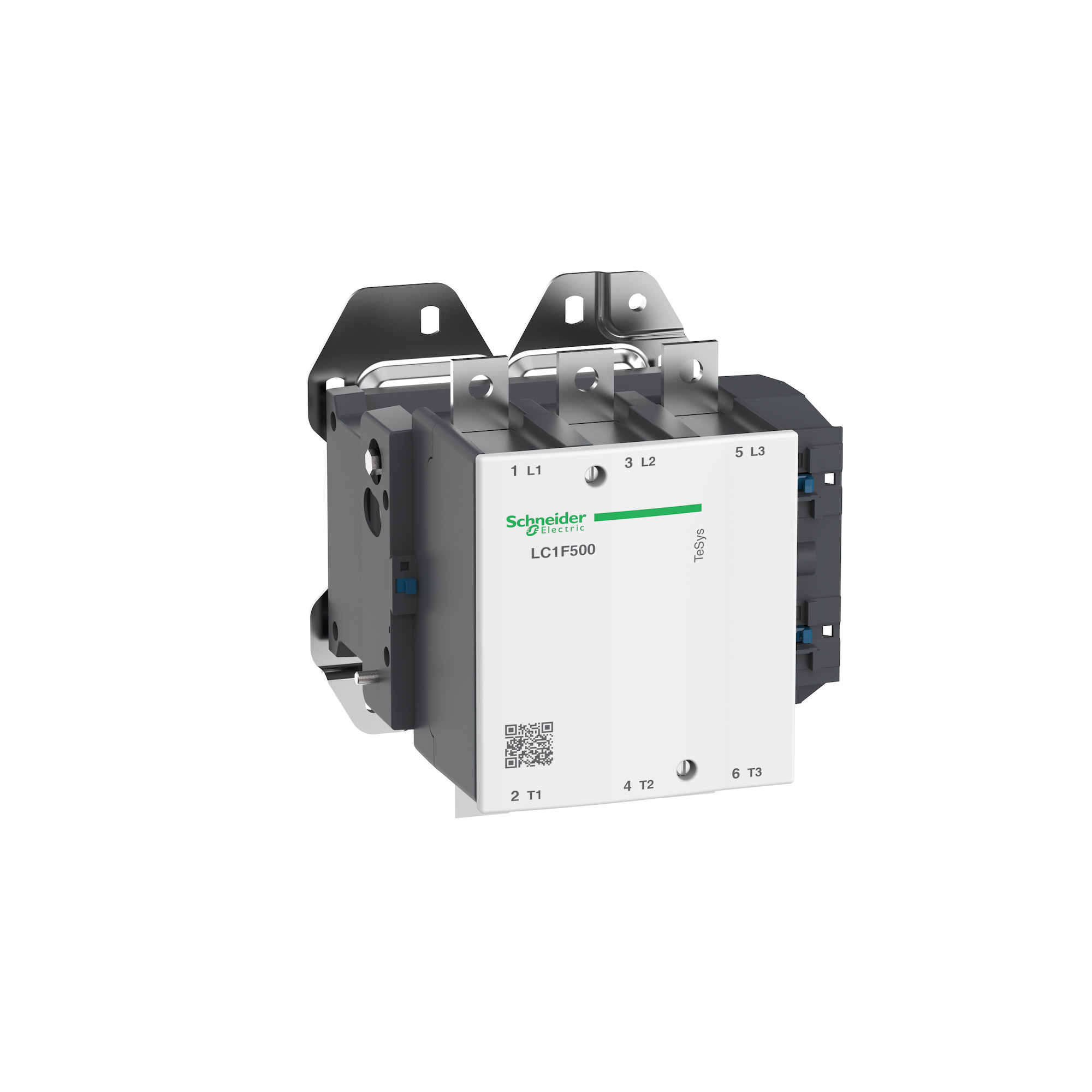

LC1F500 TeSys 3-Phase IEC Contactor With Coil, 600 VAC V Coil, 1100 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1F500
Item #:
150358

TeSys F contactor, 3 poles (3NO), 500A/1000V AC-3, for motor applications up to 250kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Manuals & Documentation
Catalog Number LC1F500
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load;motor control
Coil Voltage 48...1000 V AC 40...400 Hz with LX1/LX9 coil;48...440 V DC with LX4 coil
Connection Power circuit lugs-ring terminals 2 240-240 mm²;power circuit bar 2 40 x 5 mm;power circuit bolted connection;control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end;control circuit screw clamp terminals 1 1-4 mm²;control circuit screw clamp terminals 2 1-4 mm²
Contact Configuration 3 NO
Mounting Mounting Plate
Standard CSA;LROS (Lloyds register of shipping);DNV;BV;ABS;CB;RMRoS;RINA;UL;UKCA;JIS C8201-4-1;EN 60947-1;IEC 60947-1;EN 60947-4-1;IEC 60947-4-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=621658&lang=en-us
GTIN 03389110122169
Item Type Contactor
