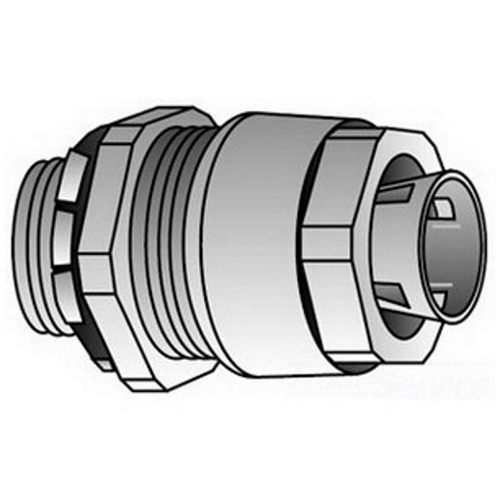

SR-50-250 Grip-Tite Strain Relief Straight Cord Connector, 1/2 in Trade, 0.156 to 0.25 in Cable Openings, Malleable Iron, Zinc Plated
- MFR:
- O-Z/Gedney
- MFR #:
- SR-50-250
- UPC:
- 783126506501
- Item #:
- 150193
SR-50-250 Grip-Tite Strain Relief Straight Cord Connector, 1/2 in Trade, 0.156 to 0.25 in Cable Openings, Malleable Iron, Zinc Plated
- MFR #:
- SR-50-250
- UPC:
- 783126506501
- Item #:
- 150193
Manuals & Documentation
| Catalog Number | SR-50-250 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways |
| Color | Red |
| Conductor Range | 0.156 - 0.25 |
| Connection | Tapered MNPT |
| Enclosure | NEMA 4 |
| Finish | Zinc Plated Body, Gland Nut And Locknut |
| Material | Malleable Iron Body And Gland Nut, Nylon Gripper, Neoprene Grommet, PVC Or Buna-N Sealing Ring, Steel Locknut |
| NEMA Rating | 4 |
| Special Features | Provide strain relief to protect the cord or cable from pullout; Grip-tite style, 2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal (up to 1 IN diameter cord range); Simple installation, cord can be installed without disassembly of the fitting; Liquidtight/oiltight/raintight; Suitable for NEMA 4 enclosures and other wet locations; Slim diameter profile allows close spacing between connectors; Furnished complete with sealing ring and locknut; Colored gripper allows for easy identification; UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant) |
| Standard | Third Party Certification: UL File Number E-11857, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, Suitable for use in Hazardous Locations under NEC Sec. 501-4(b), 502-4(a) (2), and 503-3(a), For Class I, Division 2, Class II, Division 1, 2, and Class III, Division 1, 2 |
| UPC | 783126506501 |
| GTIN | 00783126506501 |
| Item Type | Type SR Grip-Tite Strain Relief Straight Connector |
| Size | 44563 |
| Temperature Rating | 90 |
