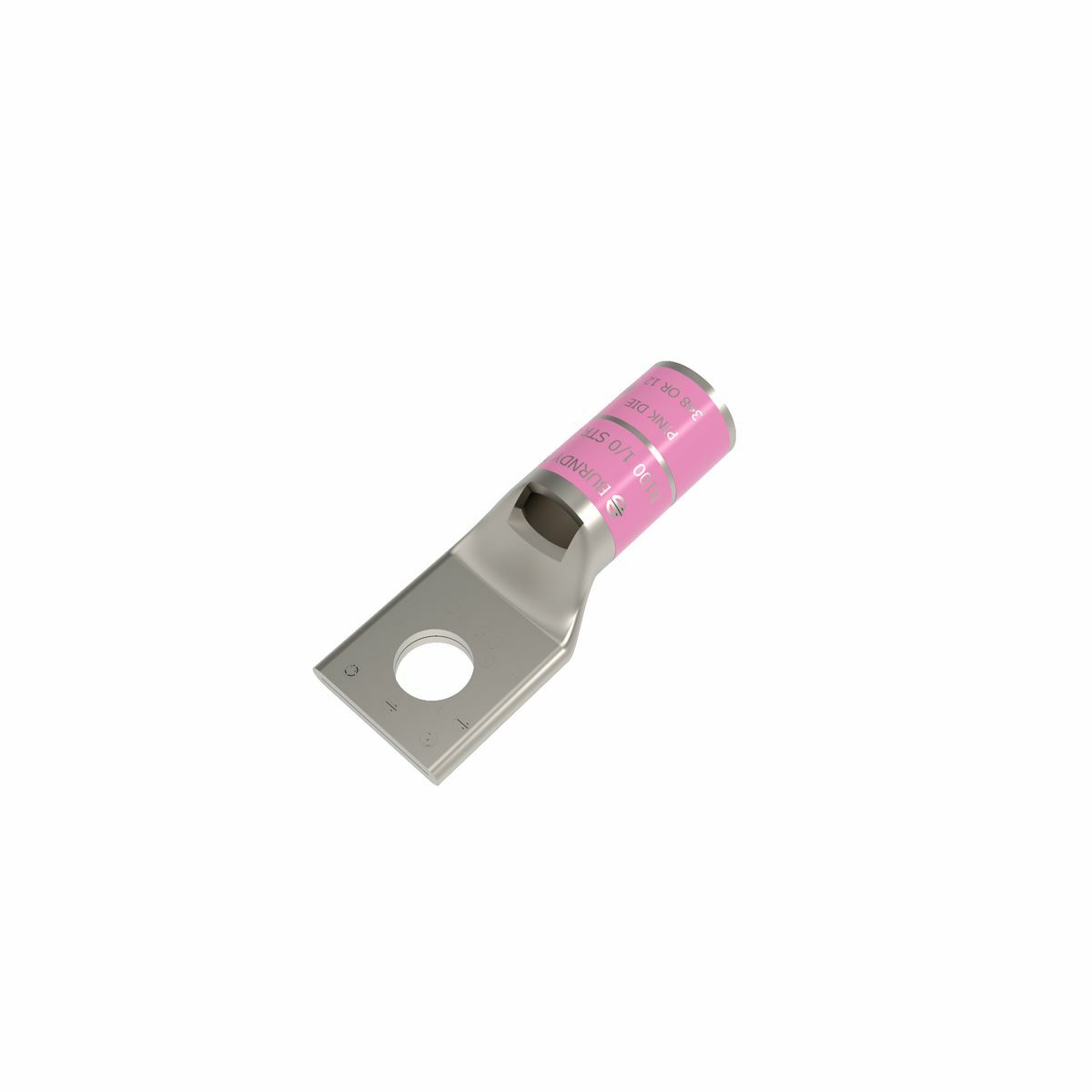

YA25L4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1/0 AWG Stranded Copper Conductor, Die Code: 12, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA25L4BOX
- UPC:
- 781810553503
- Item #:
- 149676
YA25L4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1/0 AWG Stranded Copper Conductor, Die Code: 12, 3/8 in Stud, Copper
- MFR #:
- YA25L4BOX
- UPC:
- 781810553503
- Item #:
- 149676
Manuals & Documentation
| Catalog Number | YA25L4BOX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V To 35 KV 45 DEG, 90 DEG Angles Are Available, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, OUR840, MD7-34R Mechanical: W25VT (2), W25RT (2), X25RT (2),BCT500HS, Y500CTHS Hydraulic: W25VT (2),W25RT (2), X25RT (2), W29VT (4), Y35, Y39, Y750, Y46, PAT750 Hydraulic: U25RT (1), U2CABT (1), Dieless: MY29-3 (1), MY29-11 (1), MRC840 (2), Y644HS (1), Y81KFT (1), Y81KFTMBH (1), PAT81KFT-18V (1), Wire Strip Length: 15/16 IN, Conductor Type: Commercial Stranded Copper, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 12 Element A |
| Standard | UL 486A-486B |
| UPC | 781810553503 |
| GTIN | 00781810553503 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CSWS-1/0-38 |
