Appleton

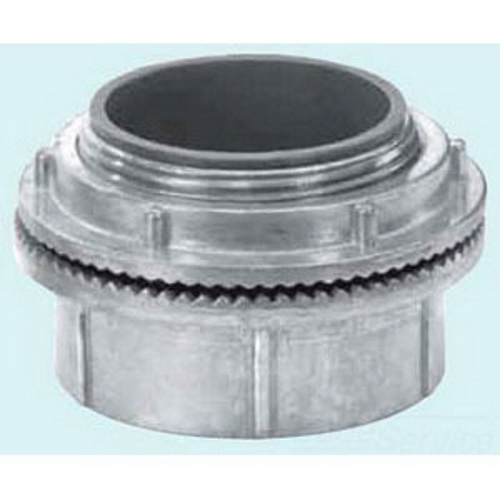

HUB100A Watertight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit, Rugged Die Cast Aluminum, Aluminum

MFR:
Appleton Electric
MFR #:
HUB100A
UPC:
781381191487
Item #:
149358

Insulated Hub, Size: 1 IN, Material: Aluminum, Enclosure: NEMA 2, 3, 3R, 4, 4X, 5, 12, 13, Insulation Class: 150 DEG C, Finish: Aluminum, Cable Entry: 1.38 IN Knock Out, Construction: Rugged Die-Cast, Length: 1.73 IN, Height: 1.99 IN, Sta

Manuals & Documentation

Features

  • Rugged metallic construction ensures mechanical protection
  • Insulated throat, rated up to +105 øC (+221 øF), prevents wire abrasion
  • Integral O-ring provides watertight seal
  • Grounding version provides positive ground for external conductor
  • Unique profile permits easy wrenching
  • Smooth, accurately tapped threads facilitate installation
  • Watertight and corrosion resistant
Catalog Number HUB100A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin China
Made in USA No
Application For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
Cable Entry 1.38 IN Knock Out
Construction Rugged Die-Cast
Enclosure NEMA 2, 3, 3R, 4, 4X, 5, 12, 13
Finish Aluminum
Insulation Class 150 DEG C
Material Aluminum
Special Features Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Hole diameter: 1.33 - 1.41 IN; Panel thickness: 0.03 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring
Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381191487
GTIN 00781381191487
Item Type Insulated Hub
Length 7.7000
Length UOM Inch
Width 6.1000
Width UOM Inch
Height 0.2280
Height UOM Inch
Weight 0.176
Weight UOM Pounds
Size 1
