SQUARE D

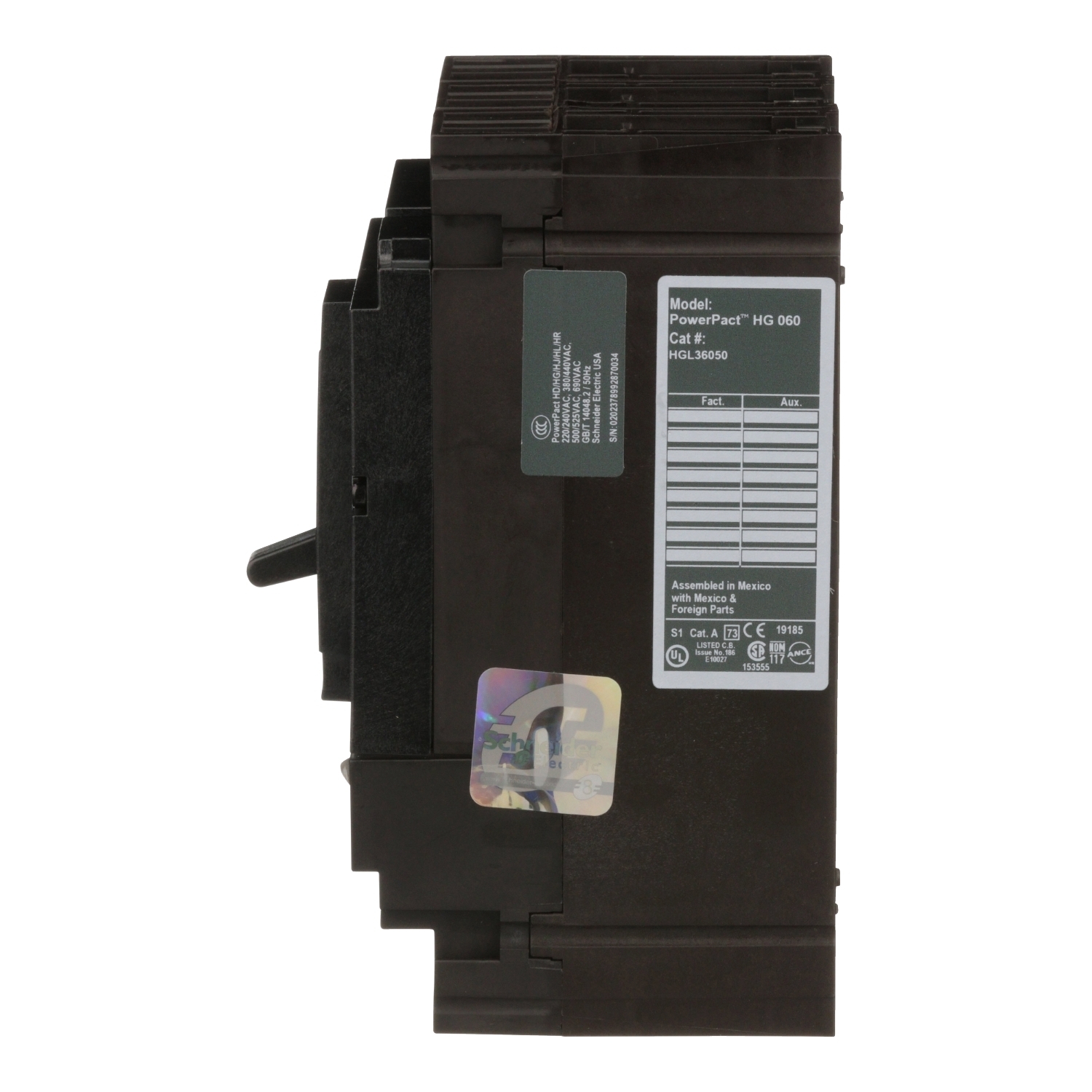

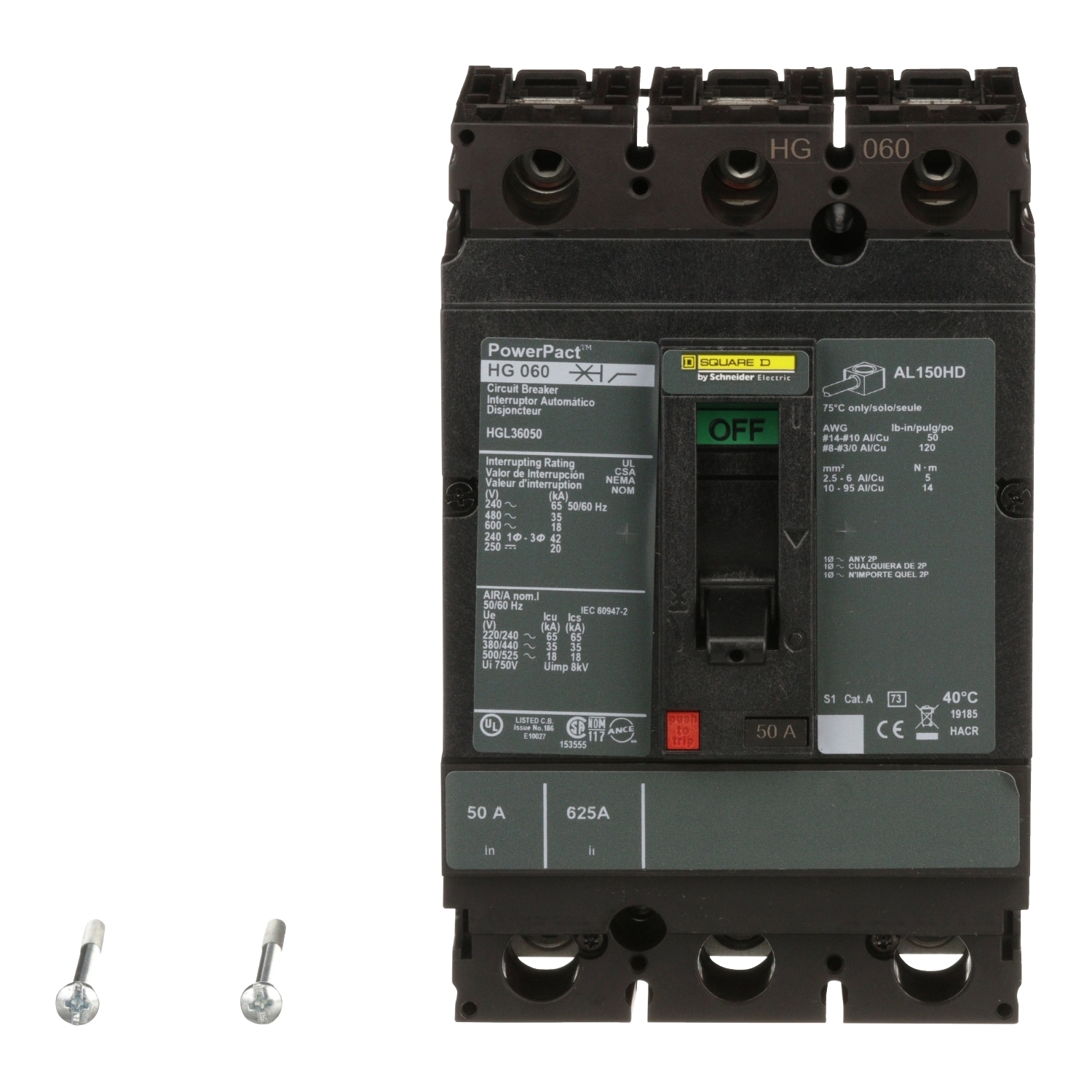

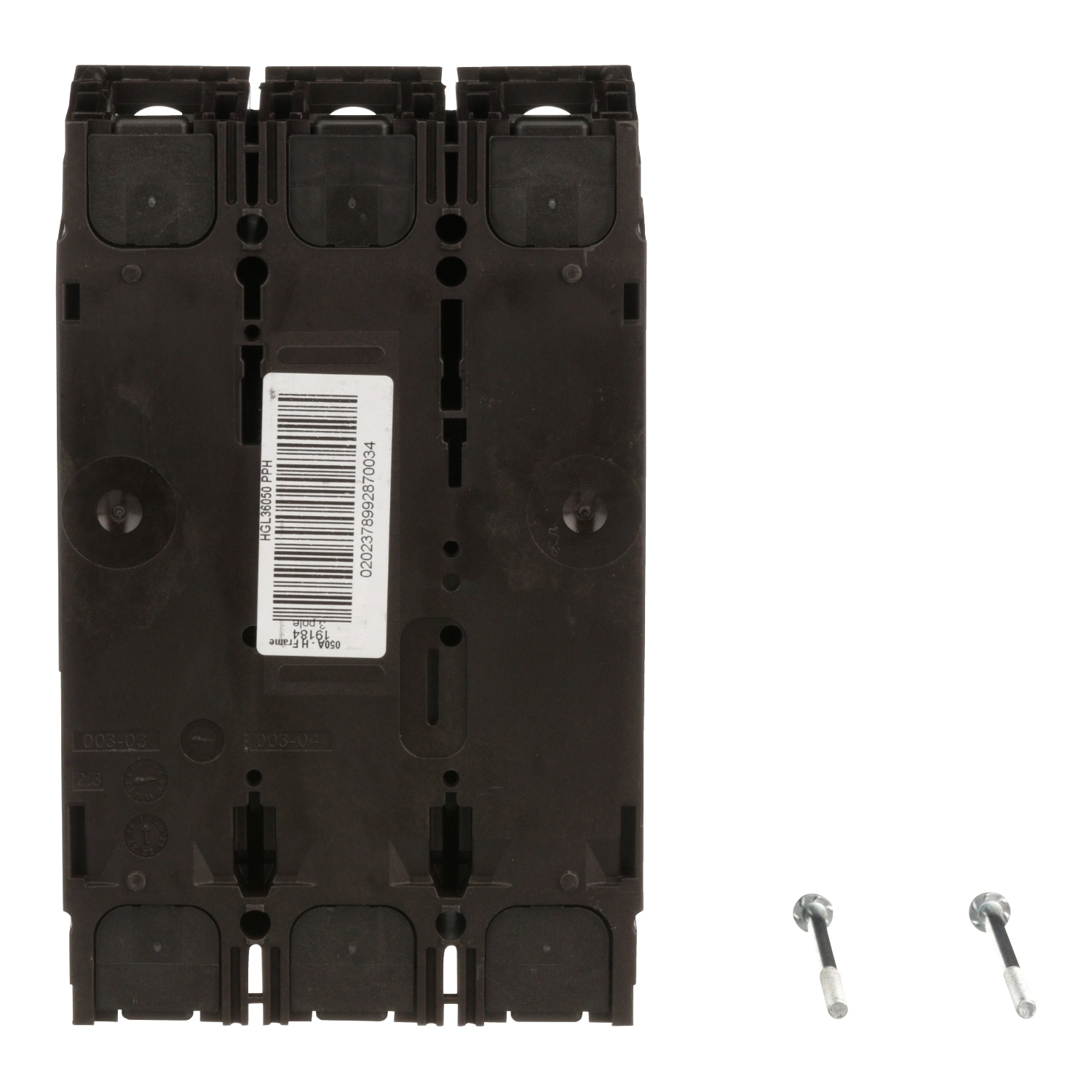

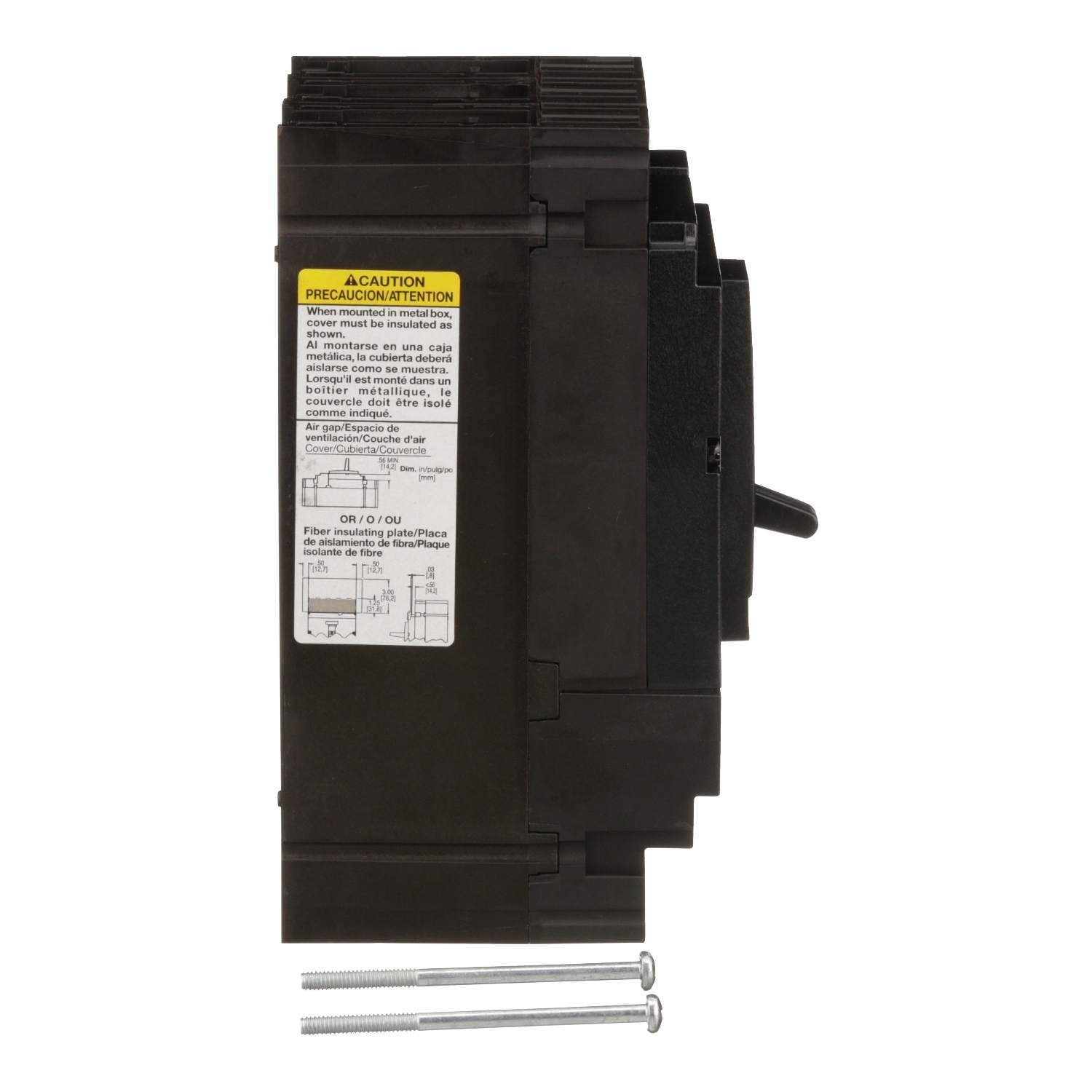

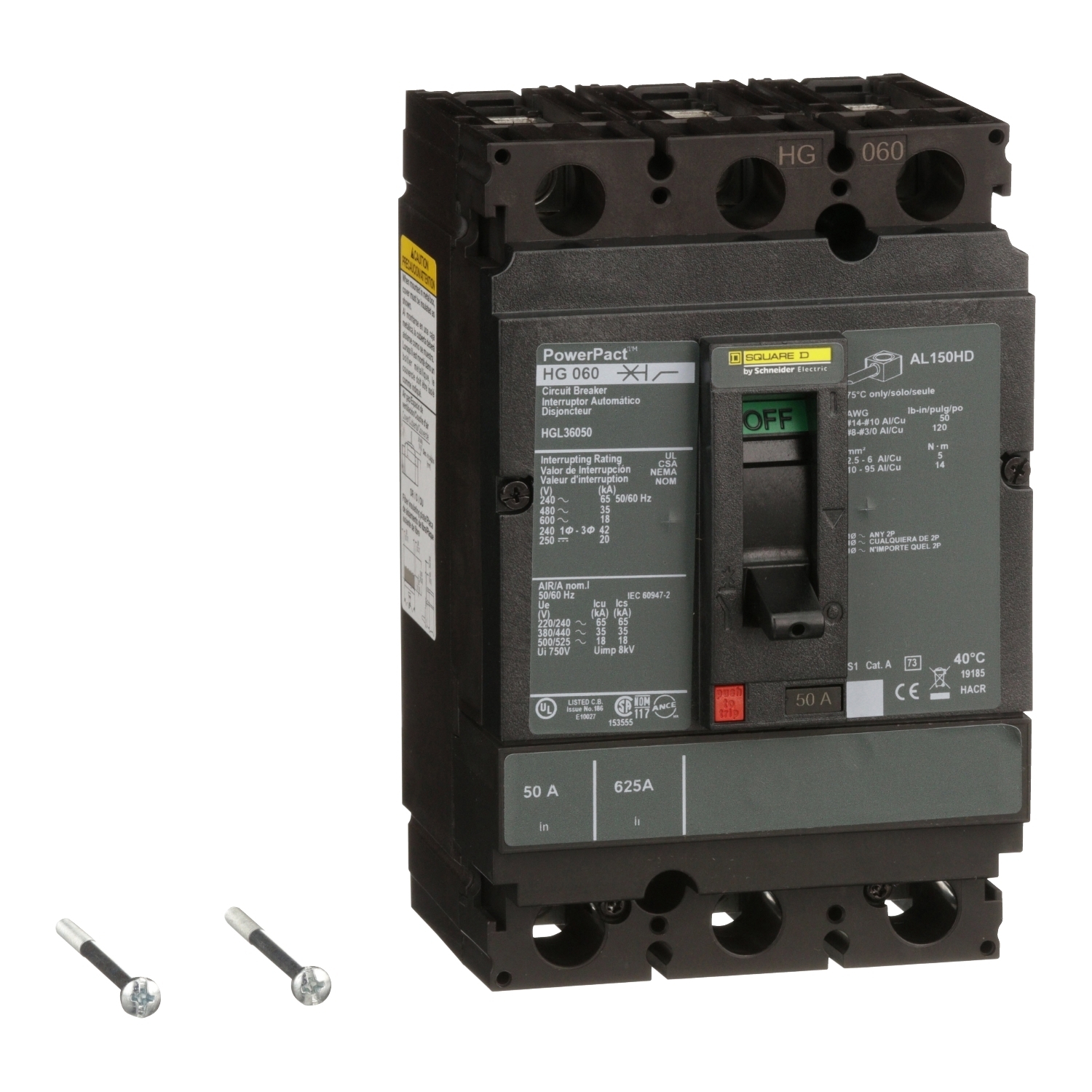

HGL36050 HGL Molded Case Circuit Breaker, 600 V AC/250 V DC, 50 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
HGL36050
UPC:
785901598763
Item #:
149272

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number HGL36050
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Distribution
Color Black
Connection Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal
Control Toggle
Number of Poles 3
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422775&lang=en-us
UPC 785901598763
GTIN 00785901598763
Item Type Circuit breaker
Trip Type Thermal-magnetic
