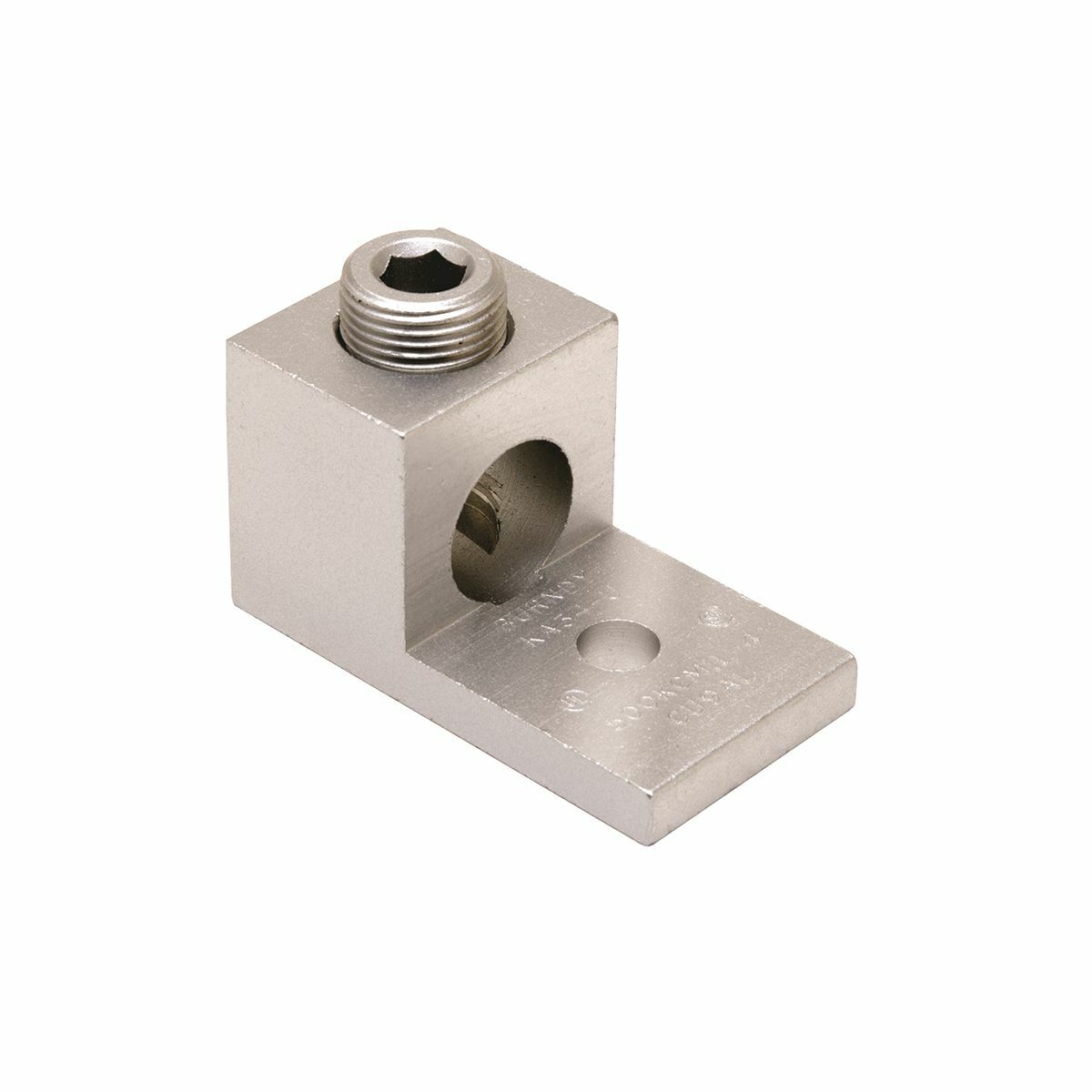

KA26U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 to 2/0 AWG Conductor Copper/Stranded Aluminum Conductor, 1/4 in Stud, 1 Bolt Holes
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KA26U
- UPC:
- 781810370100
- Item #:
- 148156
KA26U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 to 2/0 AWG Conductor Copper/Stranded Aluminum Conductor, 1/4 in Stud, 1 Bolt Holes
- MFR #:
- KA26U
- UPC:
- 781810370100
- Item #:
- 148156
Manuals & Documentation
| Catalog Number | KA26U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 1 |
| Special Features | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Allen Key, Length: 1.47 IN, Installation Torque: 120 IN-LB, Width: 0.63 IN, Height: 0.8 IN, Dimension D: 0.81 IN, Dimension N: 0.47 IN, Dimension T: 0.19 IN |
| Standard | UL 486A-486B |
| UPC | 781810370100 |
| GTIN | 00781810370100 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
| Cross Reference Products | TA-2/0 |
