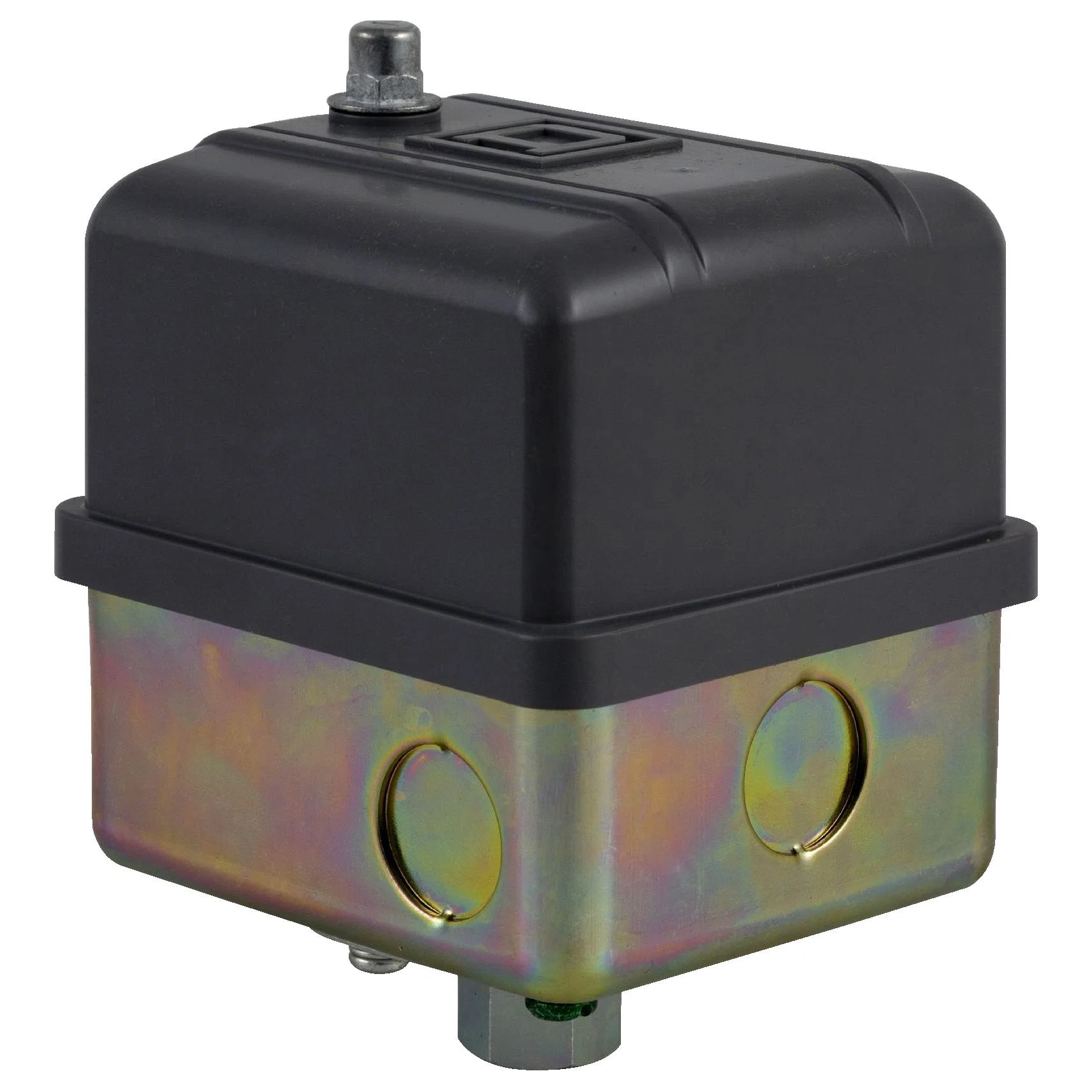

Pumptrol, pump or compressor switch 9013GH, adjustable diff., 60 80 PSI
- MFR:
- Schneider Electric
- MFR #:
- 9013GHB2J25
- UPC:
- 785901734093
- Item #:
- 148144
Pumptrol, pump or compressor switch 9013GH, adjustable diff., 60 80 PSI
- MFR #:
- 9013GHB2J25
- UPC:
- 785901734093
- Item #:
- 148144
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.
Manuals & Documentation
Features
- 9013G power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF Internal pressure
- 60 to 80 psi pressure
| Manufacturer Part Number | 9013GHB2J25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901734093 |
| EAN | 0785901734093 |
| Country Of Origin | MX |
| Dimensions | 3.44 in W x 3.88 in D x 5.4 in H |
| Enclosure Type | NEMA 3R/IP20 |
| Housing Material | Polypropylene |
| Series | 9013 |
| Temperature Rating | -33 to 257 deg F |
| Type | Type G |
| Alternative Part Number | 8147285 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ECCN: EAR99 | CSA Certified | IEC 60529 | REACH Compliant | UL 508 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Control electrically driven water pumps and air compressors |
| Connection Material | Zinc Plated Steel |
| Connection Type | Screw Clamp |
| Contact Configuration | 2NC DPST-DB |
| Diaphragm Material | Nitrile |
| Operating Cycles | 10 cpm |
| Pressure Rating | 40 to 170 psig |
