SQUARE D

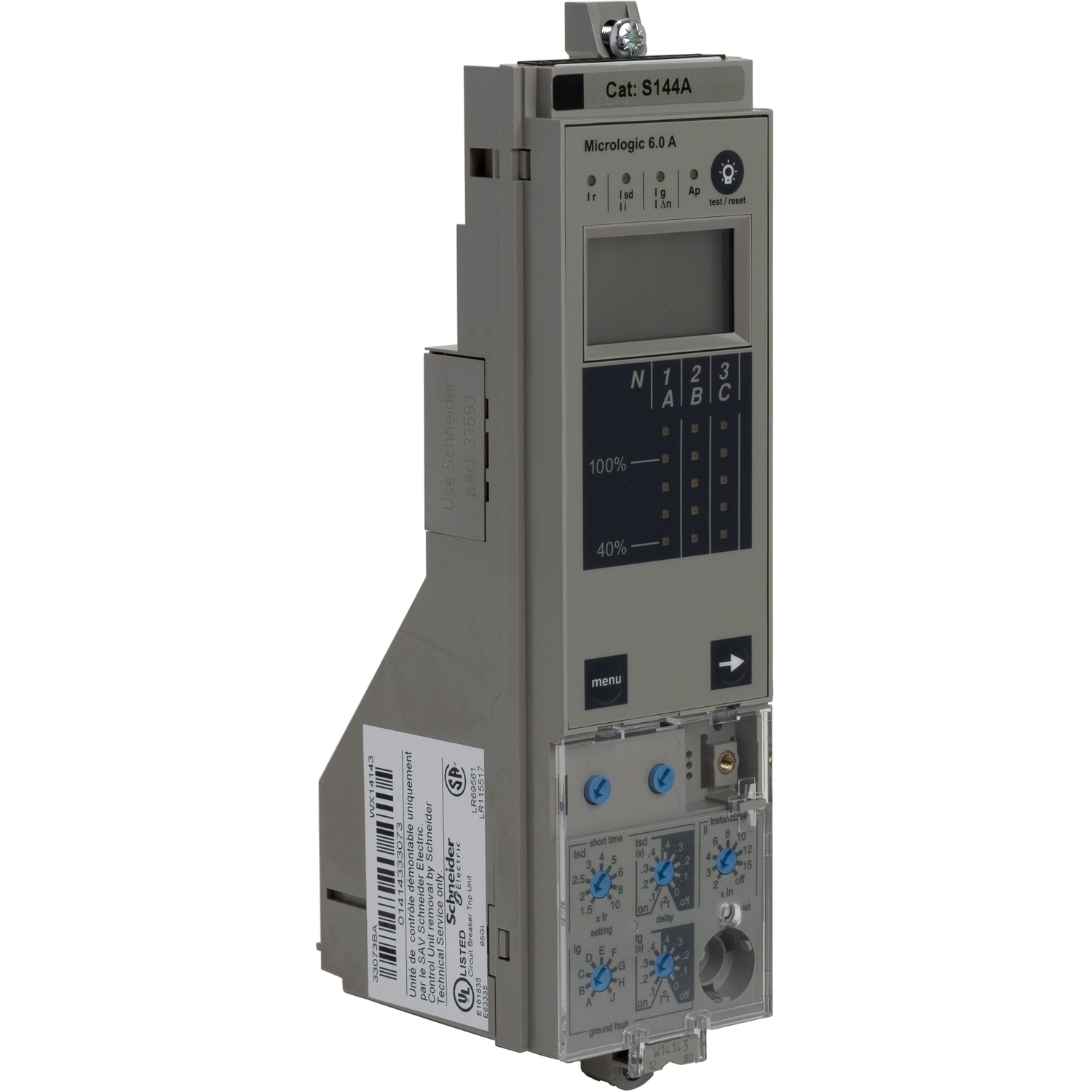

S144A Micrologic 6.0 A Electronic LSIG Breaker Trip Unit, 6 A, P/R Frame, For Use With PowerPact NS, NT, NW, PG, PJ, PK, PL, RG, RJ, RK, RL Molded Case and Insulated Case Circuit Breaker

MFR:
Schneider Electric
MFR #:
S144A
UPC:
785901979296
Item #:
148006

Square D PowerPacTP, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0A Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and ammeter aditional feature. Adjustable rating plugs are offered in eight different ranges of long-time pickup adjustments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.

Manuals & Documentation
Catalog Number S144A
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55903214&lang=en-us
UPC 785901979296
GTIN 00785901979296
Depth 2.88 IN
Cross Reference Products Rockwell PR122PLSIG|Schneider S144A|SquareD S144A
