Appleton

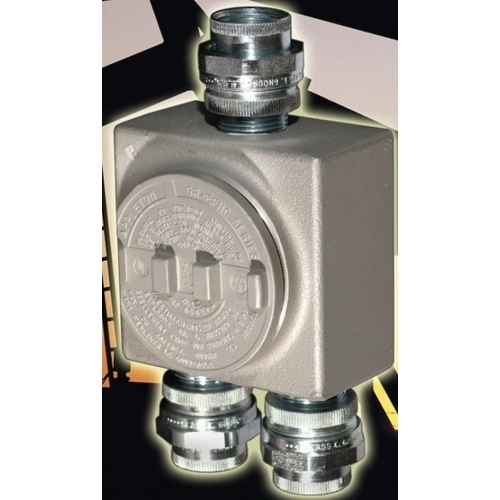

GRUSE50 Unilets GRU Dust-Ignitionproof Explosionproof Conduit Outlet Box, 1/2 in, 3-1/4 in Cover Opening, 19 cu-in, Tri-Coated

MFR:
Appleton Electric
MFR #:
GRUSE50
UPC:
781381446204
Item #:
147836

UNILETS GRUSE Outlet Box With Union Hubs, Number Of Outlet: 3, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1/2 IN, Cable Entry: (3) 1/2 IN Union Hub, Cubic Capacity: 19 CU-IN, Knockouts: No, Cover Opening: 3-1/4 IN, Width

Manuals & Documentation

Features

  • Explosion proof
  • Dust-Ignition proof
  • For use with threaded metal conduit
  • UL listed
  • CSA certified
Catalog Number GRUSE50
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (3) 1/2 IN Union Hub
Cubic Capacity 19 CU IN
Knockouts No
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Explosionproof, dust-ignitionproof; Copper free aluminum cover and body with externally threaded cover; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw; General purpose wiring; Union hubs permit easy wiring; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381446204
GTIN 00781381446204
Item Type GRUSE Outlet Box With Union Hubs
Length 9.3000
Length UOM Inch
Width 5.8000
Width UOM Inch
Height 4.6000
Height UOM Inch
Weight 4.000
Weight UOM Pounds
Size 1/2
