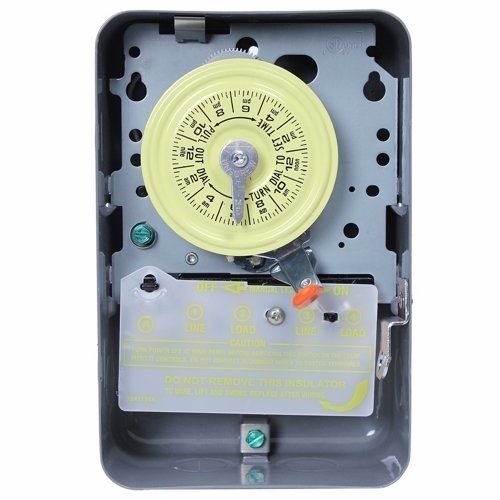

T104-20 Mechanical Timer Switch, 1 to 23 hr Setting, 208 to 277 V AC, 5 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- T104-20
- UPC:
- 078275000131
- Item #:
- 147362
T104-20 Mechanical Timer Switch, 1 to 23 hr Setting, 208 to 277 V AC, 5 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR #:
- T104-20
- UPC:
- 078275000131
- Item #:
- 147362
With the easy-to-set "Yellow Dial," these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.
Manuals & Documentation
| Catalog Number | T104-20 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | DPST |
| Amperage Rating | 40 |
| Application | Commercial, Industrial, Residential, Indoor, HVACR |
| Connection | Screw Terminal |
| Contact Configuration | 2 NO |
| Contact Rating | 40 AMP @ 120 - 277 VAC (Resistive, Inductive, Tungsten) |
| Enclosure | NEMA 1 |
| Mounting | Wall |
| Number of Poles | 2 |
| Special Features | Features: Convenient external override switch (WH40 only), Includes 3 sets of ON/OFF trippers, 1 Year Warranty |
| Standard | cULus Listed, cCSAus Certified, HVACR |
| UPC | 078275000131 |
| GTIN | 00078275000131 |
| Item Type | Water Heater Control |
| Size | 5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 1 - 23 HR |
| Voltage Rating | 208 - 277 |
| Wattage | 3 W |
