Appleton

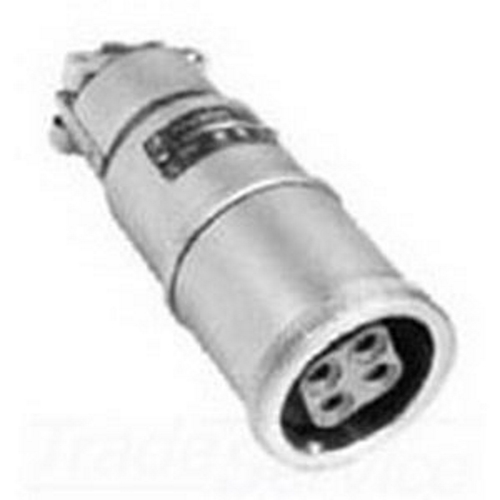

ARC6034BCRS Powertite ARC 3-Phase Grounding Style 2 Pin and Sleeve Connector Body With Reverse Service, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
ARC6034BCRS
UPC:
781381711234
Item #:
147243

Powertite Grounding Style 2 Connector Body, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Materi

Manuals & Documentation
Catalog Number ARC6034BCRS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP6034BC Metallic Clamping Ring Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features For reverse service (generator applications); Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381711234
GTIN 00781381711234
Item Type Grounding Style 2 Connector Body
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
