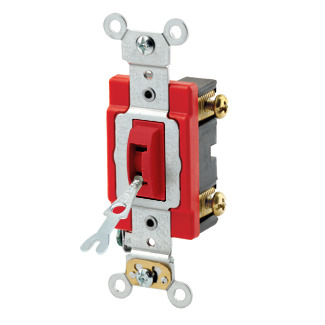

1221-2RL Extra Heavy Duty Tamper Resistent Toggle Switch, 120/277 V AC, 20 A, 1/2 hp Power Rating
- MFR:
- Leviton
- MFR #:
- 1221-2RL
- UPC:
- 078477358047
- Item #:
- 146810
1221-2RL Extra Heavy Duty Tamper Resistent Toggle Switch, 120/277 V AC, 20 A, 1/2 hp Power Rating
- MFR #:
- 1221-2RL
- UPC:
- 078477358047
- Item #:
- 146810
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Manuals & Documentation
| Catalog Number | 1221-2RL |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SP |
| Actuator | Key |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Red |
| Connection | Back Wired;Side Wired |
| Mounting | Box |
| Number of Poles | 1 |
| Standard | NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| UPC | 078477358047 |
| GTIN | 00078477358047 |
| Item Type | Toggle Switch |
| Size | 46 H x 1.31 W x 13 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Operating Temperature | -40 to +65 DEG C |
| Voltage Rating | 120/277 |
